dorpo DMP-A1

Digital Music Player/Streamer/DAC/Preamp/Headphone Amp

• Digital Music Player
• Music Streamer
• Network Streaming
• DAC
• Preamp
• Headphone Amp

All-in-One - Music Streamer / DAC / Preamp / Headphone Amp

The dorpo DMP-A1 is a state-of-the-art digital music player designed for music lovers who expect top-tier performance combined with the versatility that today’s users need. The DMP-A1 combines first-class digital music playback and file management with network streaming capabilities, making it a DAC, preamplifier, and headphone amplifier all in one elegant device.

Exquisite Exterior Design Based on High-Quality Audio Technology

The DMP-A1 combines a robust enclosure structure with an exquisite exterior design. It features a reinforced chassis made of a solid aluminum alloy, manufactured using high-precision CNC machining, an integrated center frame, and an exceptional matte metal finish. The rounded corners ensure excellent chassis rigidity; the chassis is securely clamped at the top and bottom, forming the perfect platform for the electronics. The silky-smooth volume control with customizable, colorful “Dynamic Light Ring” lighting effects adds a touch of style to the overall package.

By combining classic, high-quality design with modern elements, the DMP-A1 perfectly caters to the preferences of audiophiles and music lovers alike.

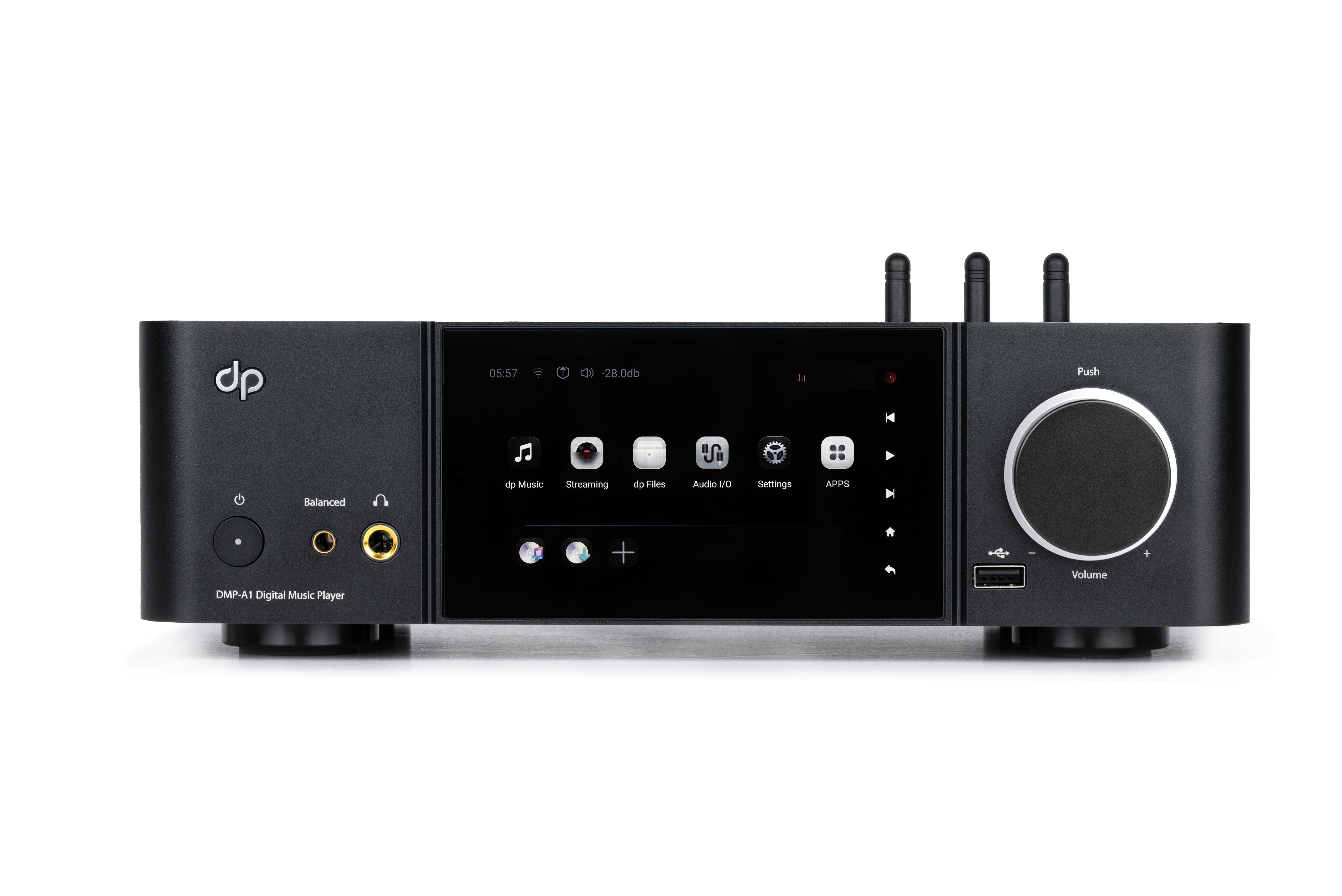

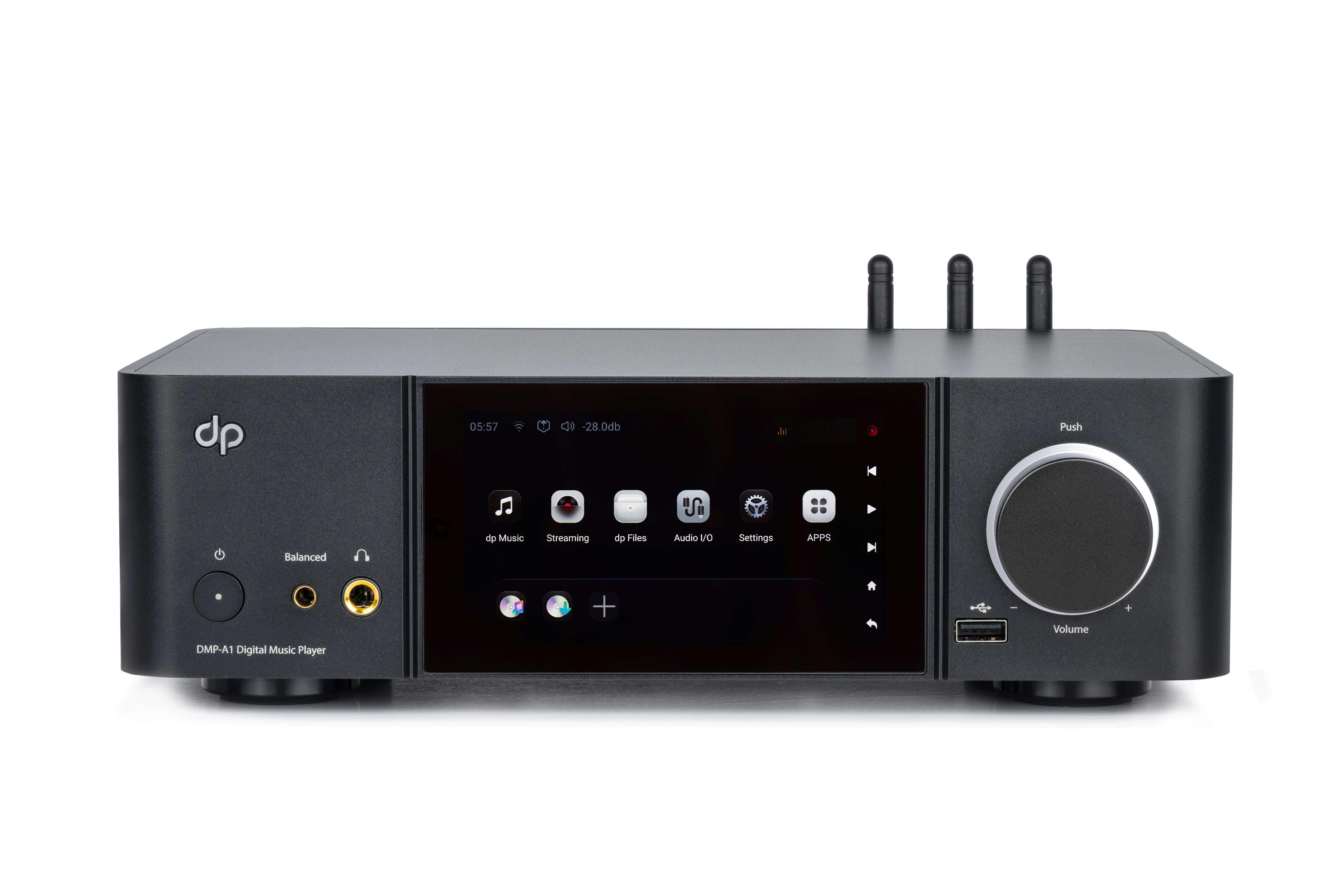

5-inch HD touchscreen LCD display with an exceptionally smooth user interface

The DMP-A1 features a 5-inch 1080p color LCD touchscreen with high-resolution display, smooth capacitive touch control, a user-friendly interface, and powerful digital player functions that enable both visually impressive and intuitive user interaction.

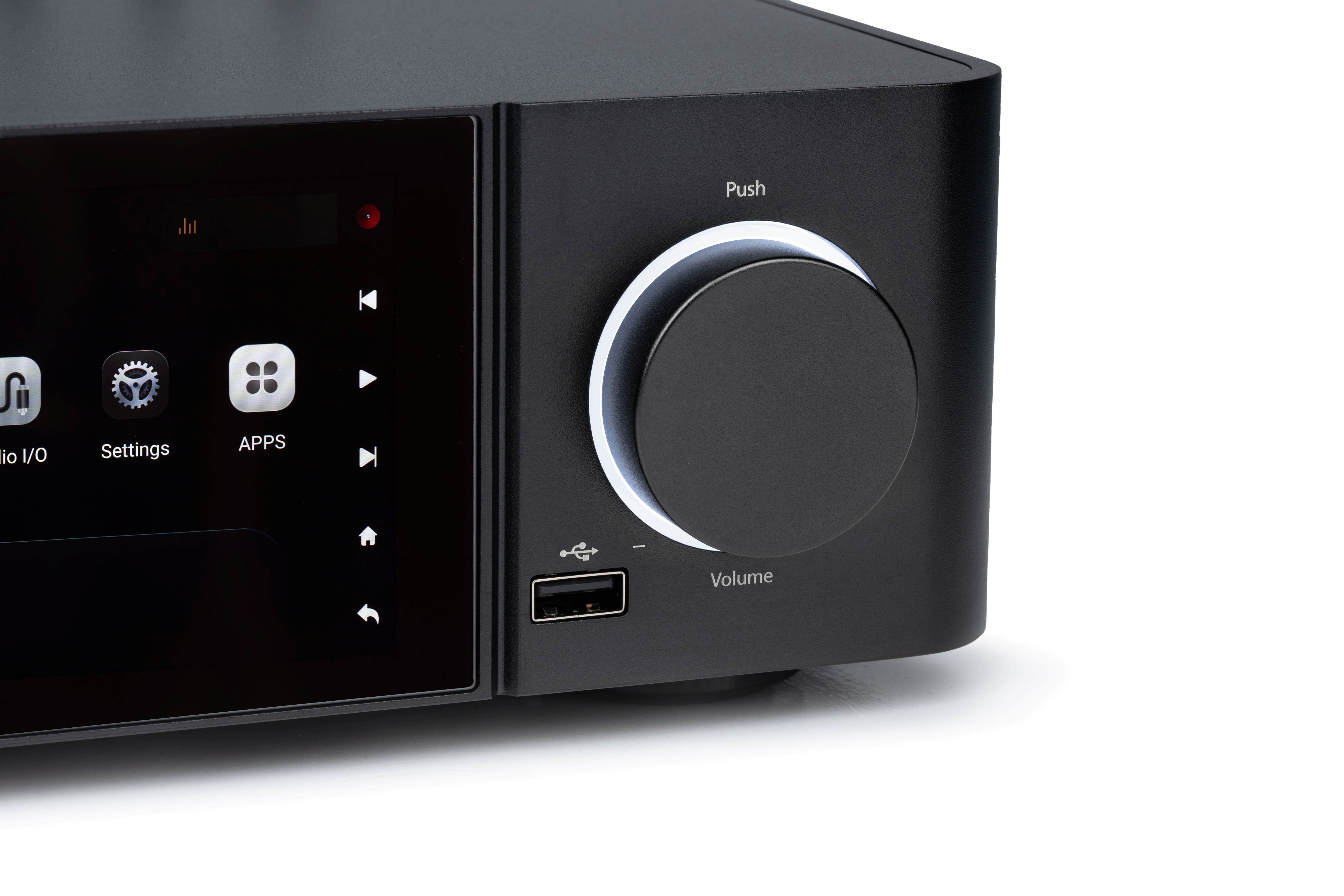

“Smart Ring” backlighting on the rotary control for a more dynamic musical experience

The volume control on the front of the DMP-A1 features a “Smart Ring” design element that serves both as a device status indicator and as ambient lighting. It supports customizable multicolor lighting effects: for example, when the device powers up, the ring glows with a “breathing” effect, and during music playback, it can “dance” to the rhythm of the audio spectrum, creating a fully immersive listening atmosphere.

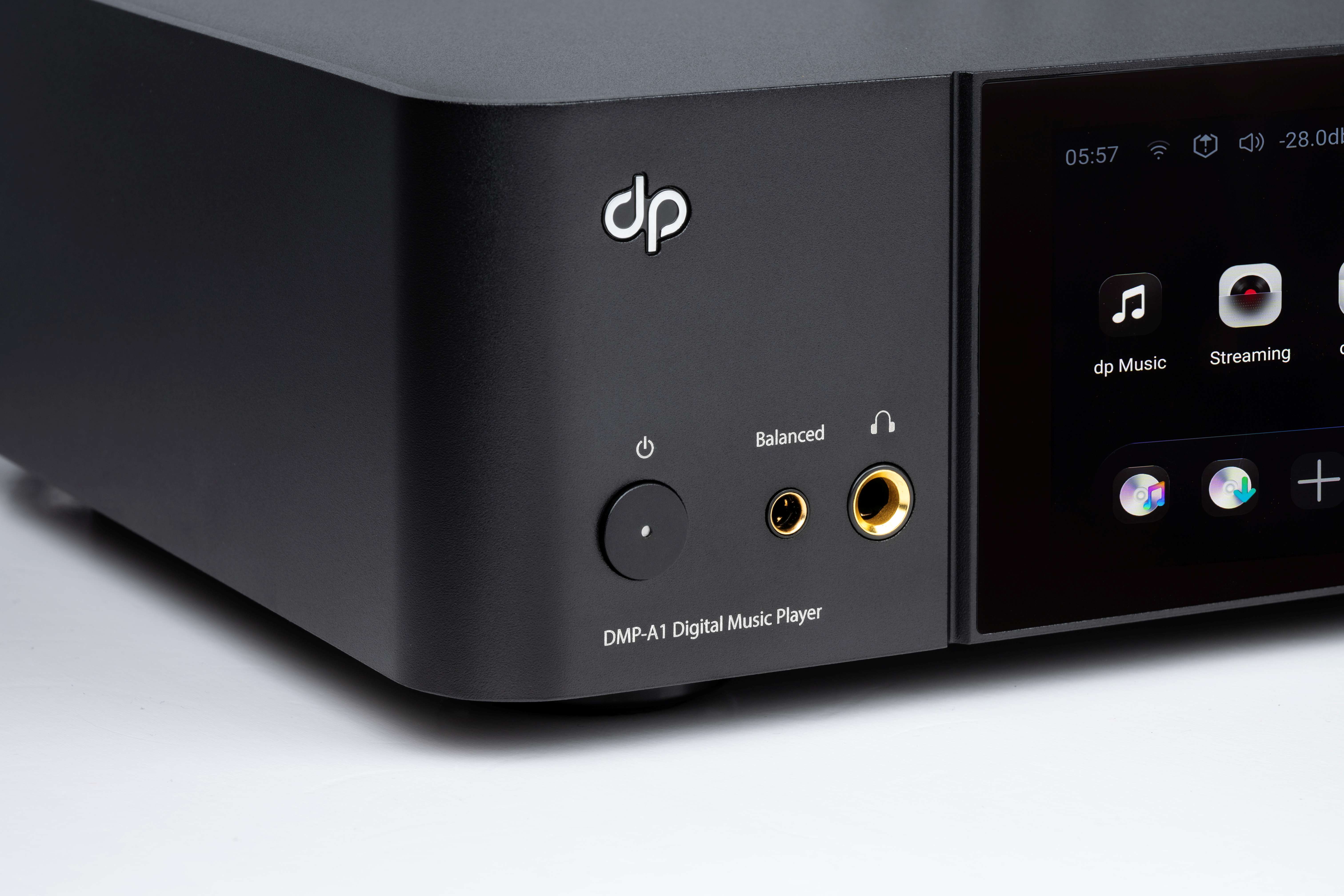

Built-in high-performance balanced headphone amplifier

The DMP-A1 features a professional headphone amplifier that offers both a 6.35-mm single-ended and a 4.4-mm fully balanced output. Thanks to outstanding technical specifications and high drive power with two gain levels (high/low), it can easily drive a variety of headphones with an impedance ranging from 16 to 300 Ω.

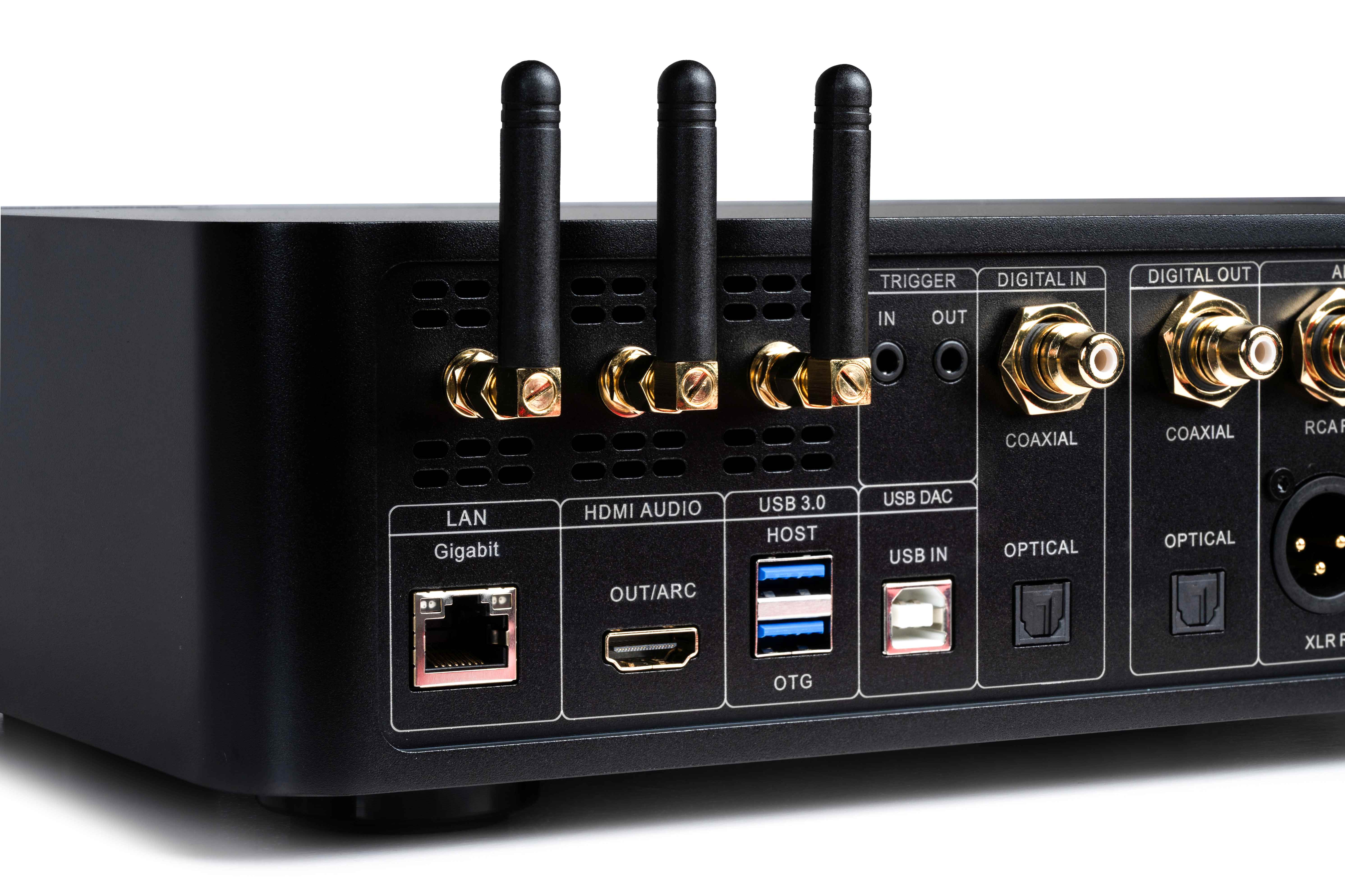

Uncompromising Connectivity

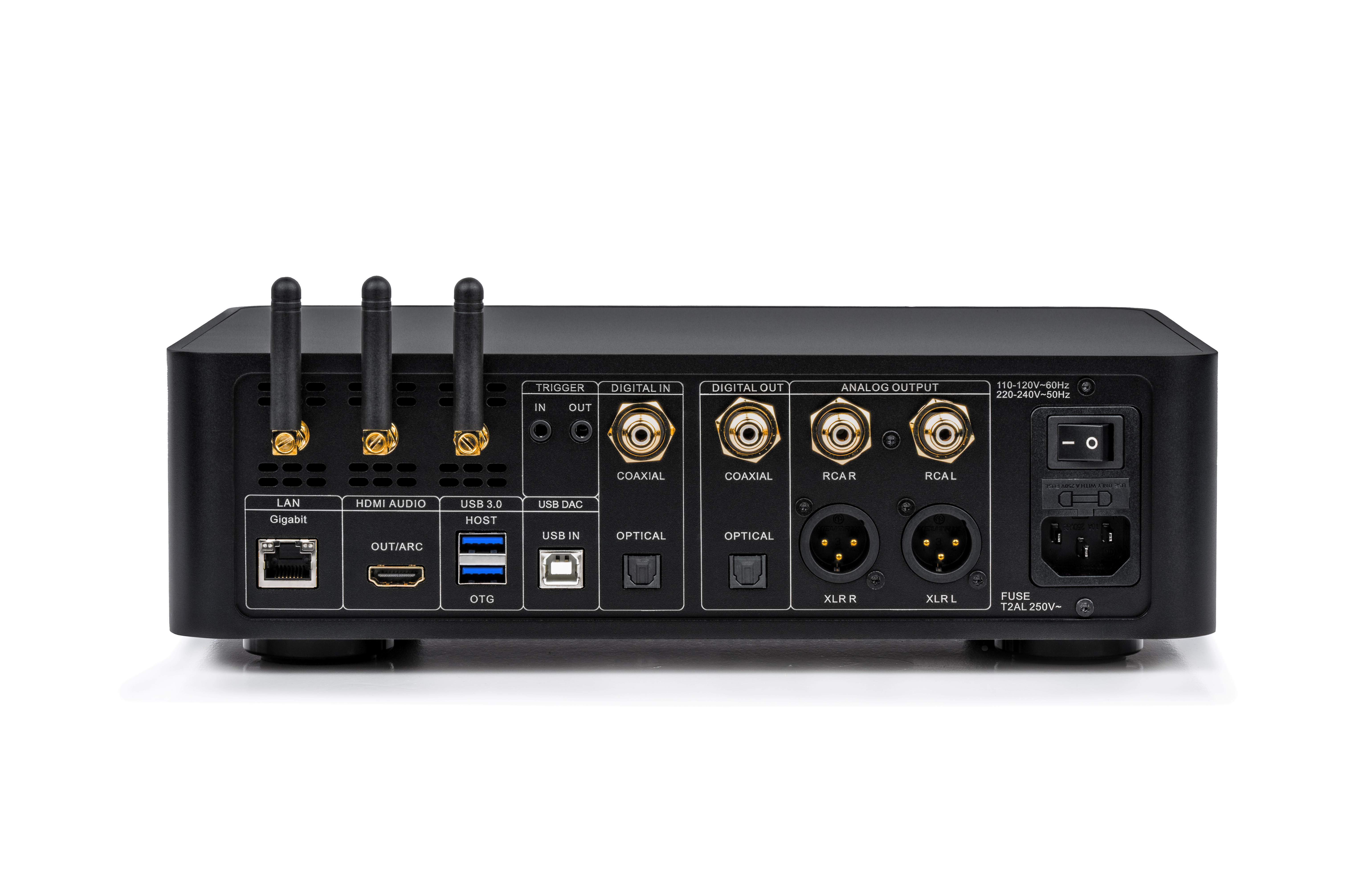

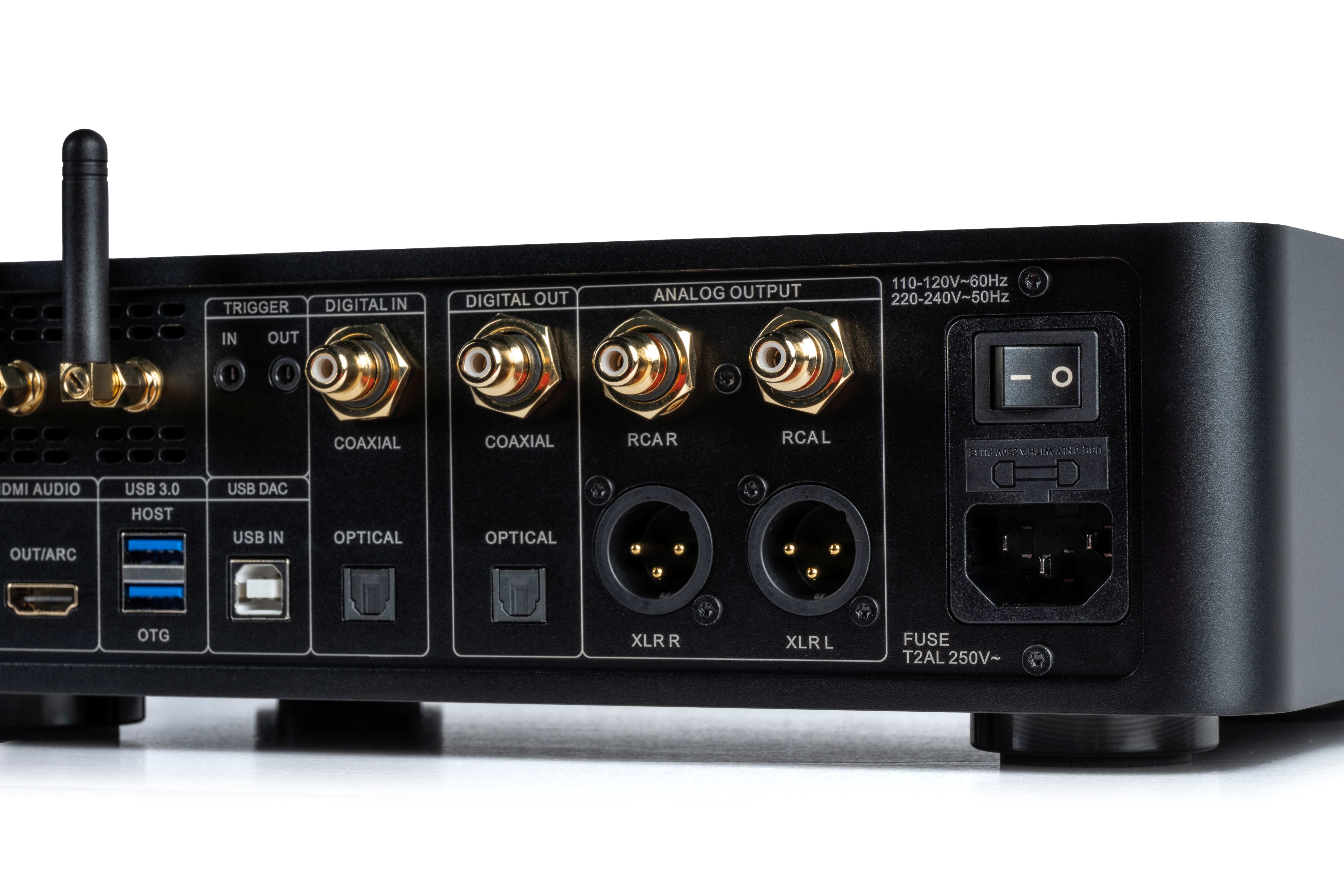

The DMP-A1 is designed to serve as the central hub of your audio system. It features a comprehensive selection of digital inputs—including optical, coaxial, and HDMI ARC connections—to connect all your sources. Both RCA and fully balanced XLR preamp outputs are available, ensuring clean, high-resolution signal transmission. With built-in high-speed wired and wireless networking capabilities, as well as system trigger and USB expansion ports, it offers both versatility and precise control, forming the reliable core of a modern listening environment.

Quad-Core 64-Bit ARM Cortex-A55 Processor

Powered by a high-performance quad-core processor, the DMP-A1 is capable of seamless multitasking and decoding. From loading large files to processing high-resolution audio streams, the DMP-A1 handles every task with ease.

Experience Effortless Performance

4 GB of RAM ensures seamless multitasking and lightning-fast data access, while the 64 GB of internal storage provides ample space for all your content. Together, they deliver faster processing, lower latency, and a lag-free experience.

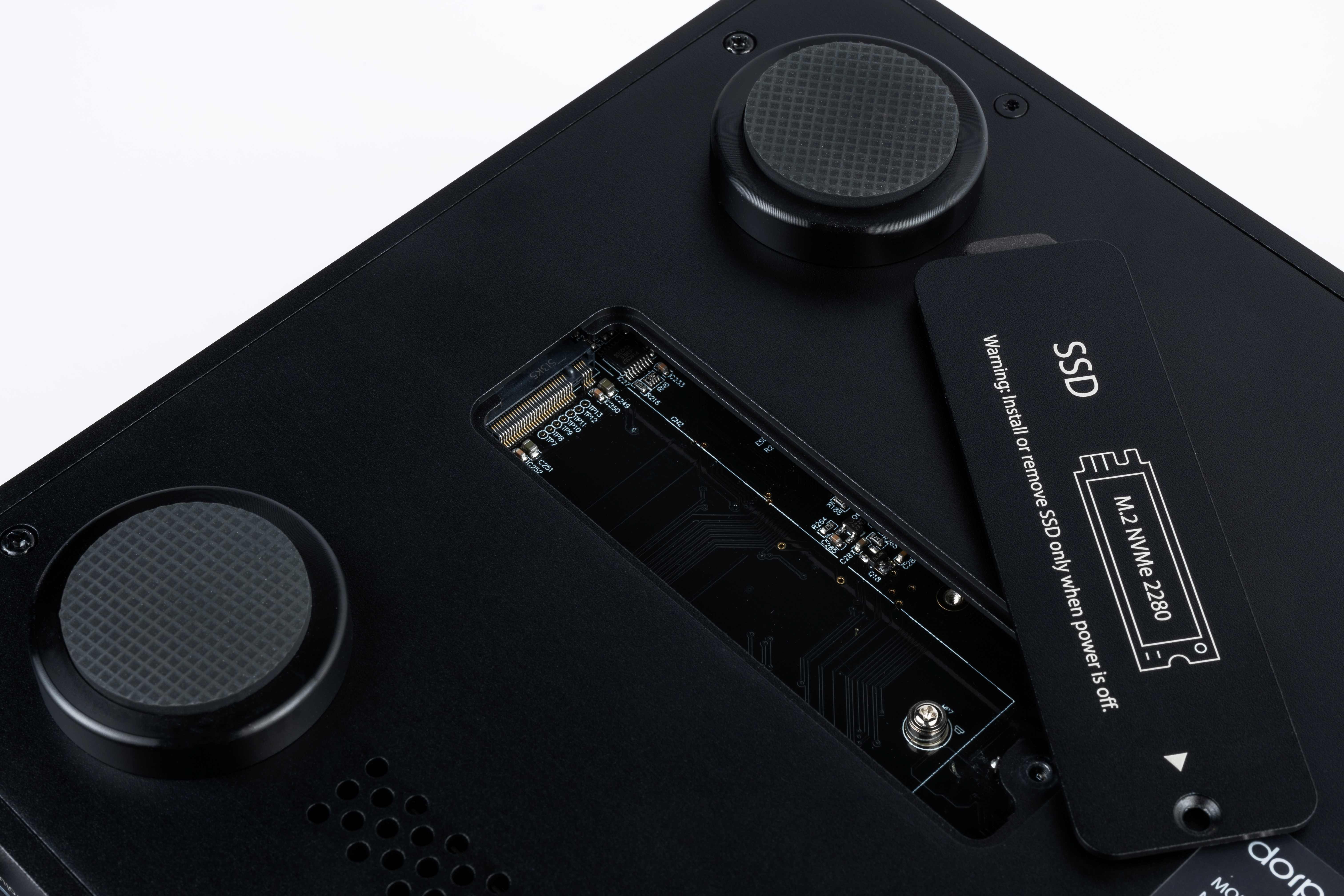

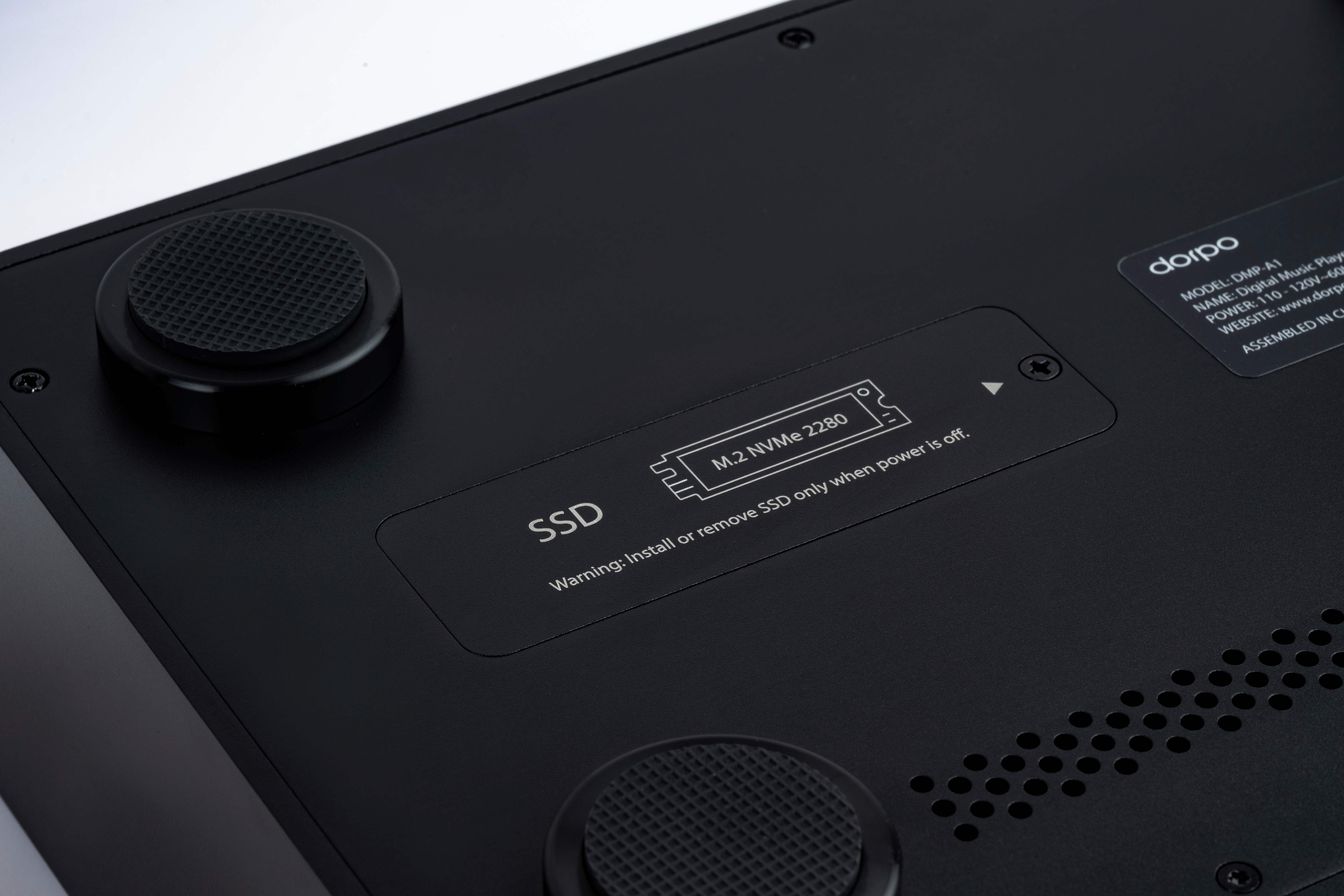

Integrated M.2 SSD Slot for More Flexible Expansion

For high-quality media storage, the DMP-A1 not only offers extensive USB expansion options and support for network storage but also features an externally accessible, tool-free M.2 NVMe 3.0 2280 SSD slot. Users can easily install or replace SSDs without having to disassemble the device, allowing for expansion up to 8 TB of SSD capacity. This ensures faster, more stable, and completely silent high-performance local storage.

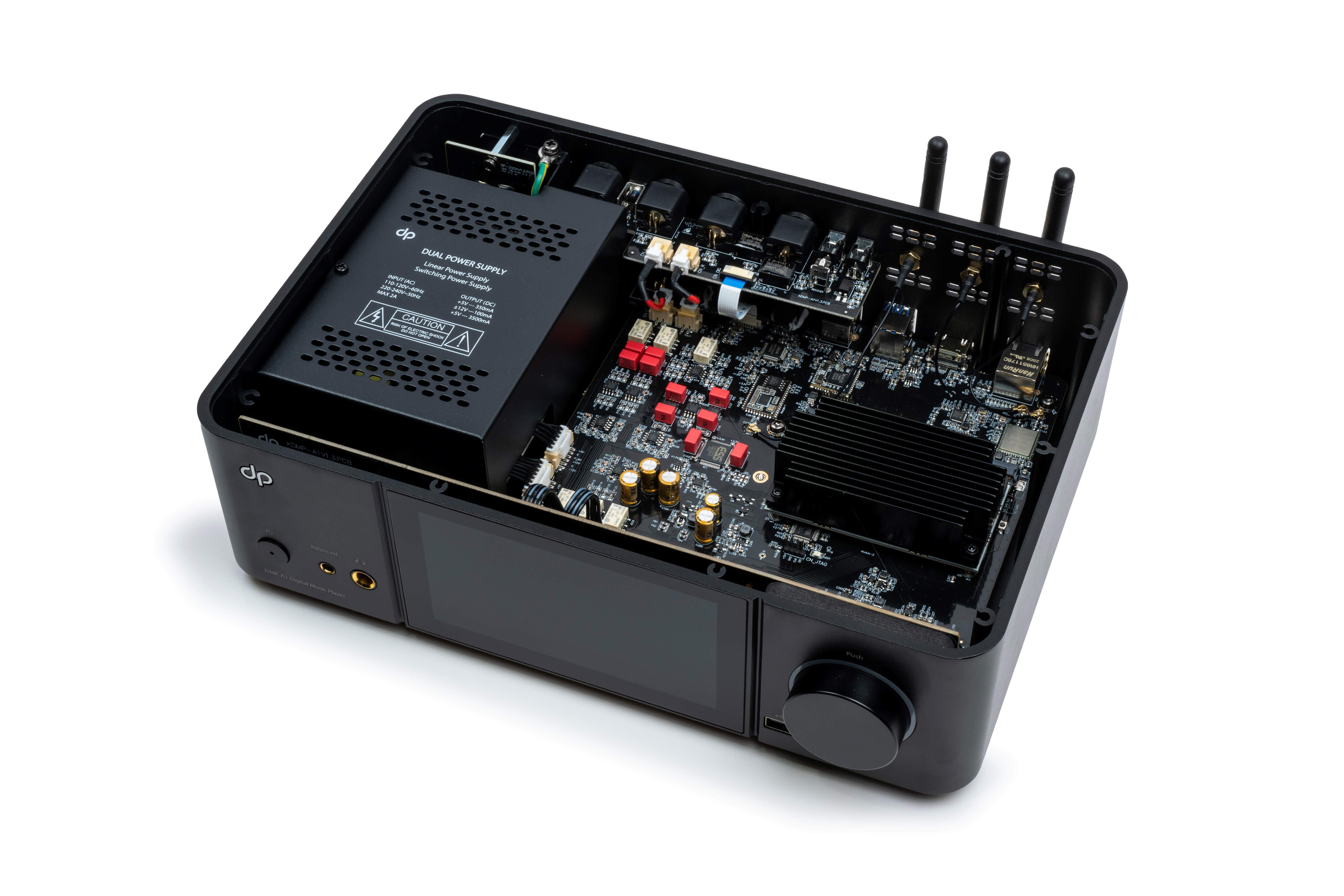

High-Performance Linear Power Supply and Low-Noise Switching Power Supply

The DMP-A1 features a dual-power-supply design that combines a high-performance linear power supply with a low-noise switching power supply. The low-noise, regulated power supply module primarily powers the digital circuits, while the professional linear power supply is specifically designed for analog circuits. By reducing ripple and interference, it ensures a cleaner power supply to the audio circuits, a quieter background, and outstanding sound clarity. In addition, the entire power supply module features a fully enclosed metal shield to effectively isolate interference between power and signal circuits.

High-Performance ESS ES9039S Pro DAC

The DMP-A1 utilizes ESS’s latest flagship DAC chip, the ES9039S Pro, which is considered the industry benchmark for performance. With lower total harmonic distortion, it ensures minimal noise and distortion, delivering exceptional sound quality with captivating and fatigue-free audio reproduction—for an authentic high-fidelity listening experience.

Third-Generation XMOS 316 Audio Interface

The DMP-A1 utilizes the third-generation XMOS 316 audio processor, which features higher processing speeds and expanded USB bandwidth to ensure lossless transmission of high-resolution audio data. The USB interface supports formats up to DSD512 Native, PCM768@32bit, and full MQA decoding. The optical and coaxial connections also support DSD64 (DoP) and PCM192@24Bit.

Low-jitter dual-clock synchronization for greater precision

The DMP-A1’s audio clock system is based on a low-jitter, high-precision dual-clock design. Two high-precision quartz oscillators (45.1584 MHz and 49.152 MHz) each control multiples of the 44.1 kHz and 48 kHz sampling frequencies, effectively reducing jitter for more accurate audio decoding.

Fully balanced, monitor-quality preamp output for superior sound quality

The DMP-A1’s analog audio circuitry is based on a fully balanced amplifier architecture. From the DAC to all analog output connectors (XLR, RCA, headphones), signals are processed via fully balanced differential amplifier circuits, which eliminate common-mode crosstalk, improve channel separation, and ensure higher noise immunity to prevent unwanted noise. To prevent potential signal interference when using both RCA and XLR outputs simultaneously, independent output selection is supported to ensure higher audio specifications and better sound quality. The fully balanced preamplifier circuit enables precise preamplifier volume control without the need for additional external preamplifiers.

High-Quality Audiophile Components for Uncompromising Sound Optimization

The DMP-A1’s analog output circuit uses carefully selected premium components from around the world to achieve monitor-grade audiophile sound quality. No expense was spared to ensure purer, more authentic sound reproduction.

Professional Bluetooth module with high-definition Bluetooth technology

The DMP-A1’s Bluetooth audio receiver features a powerful Qualcomm QCC5181 Bluetooth 5.4 module that supports numerous codecs such as AAC and SBC, among others. With audio transmission up to 96 kHz/24-bit, it enables convenient wireless playback from smartphones, computers, or tablets while delivering a CD-quality listening experience.

Deeply Customized dp Funplay UI System

The DMP-A1 features a comprehensively customized Funplay UI system based on the Android 12 platform, developed specifically for digital music playback devices. With a sophisticated dp desktop interaction system and a powerful music library management system featuring a multi-play function, the DMP-A1 offers all the essential features music lovers and audiophiles need to enjoy their music—whether via a third-party streaming service or locally stored content.

dorpop Music Player, the expert in high-resolution audio playback

The in-house developed dp Music Player supports the playback and decoding of lossless music formats such as SACD-ISO, DFF, DSF, FLAC, WAV, APE, DTS, and MQA with a maximum sampling rate of up to DSD 512/PCM 768 kHz. The system completely bypasses SRC limitations and supports native, original sampling as well as direct output of high-resolution audio from third-party apps. The DMP-A1’s optical, coaxial, and USB inputs fully support decoding of the three MQA master formats: “MQA,” “MQA Renderer,” and “MQA Studio.”

Comprehensive Support for Popular Music Services

The DMP-A1 also serves as a powerful streaming media player with built-in support for popular global online music services such as Tidal, Spotify, Qobuz, Deezer, Apple Music Hi-Res Audio, and Amazon.

DMP-A1 Streaming Services

*Streaming services will be installed and added over time via wireless firmware updates as certification progresses.

*Please note: “Roon Ready” will be available shortly in a future firmware update

Comprehensive network streaming and convenient push playback from mobile devices

The DMP-A1 also supports push playback of network music streams from mobile devices via Roon Ready, Spotify Connect, Qobuz Connect, AirPlay, DLNA, Bluetooth, and other services.

*Network streaming features will be installed and added over time via wireless firmware updates as certification progresses

*Please note: “Roon Ready” will be available shortly in a future firmware update

Smart features for syncing and managing your music library

The dp Music Player is not only a professional music player compatible with all types of lossless formats, but also intelligent music management software. It supports online data synchronization and helps you accurately locate locally stored tracks, including dynamic lyrics, album and artist information, and more. For extensive local music collections, it automatically categorizes them by album, genre, artist, and sampling format. It also supports user-friendly features such as creating favorite playlists and precise track search, thereby meeting even the demands of the most passionate audiophiles.

Powerful dp File Manager for Easier File Management

The dp File Manager supports access to and management of extensive local storage, network-attached NAS devices, and various cloud storage services. It enables flexible file operations such as editing, copying, pasting, deleting, and adding to favorites, providing an efficient and user-friendly file management experience.

SMB/NFS Network Sharing

In addition to its built-in SSD storage and extensive USB expansion options, the DMP-A1 supports LAN NAS access via SMB or NFS protocols for fast playback of high-bitrate media files from network devices. It can also function as an SMB server, allowing other devices on the local network to access and manage the shared storage via IP—for greater flexibility.

CD Playback and Lossless Ripping

The DMP-A1 supports external USB optical drives for CD playback and ripping. Since no additional, expensive CD player is required, you can enjoy your valuable physical album collections at any time, making your music experience more diverse and enriching.

Customizable Playback Interface, Spectrum Display, and VU Meter Options

The music player offers several customizable playback interfaces for audiophiles, including dynamic VU meters and various spectrum display styles that can be switched between for all music formats with the touch of a button.

---Dual-Screen Support for a Large-Screen Experience

--In addition to the user interface on the built-in screen, the DMP-A1 supports an HDMI output for connecting to large screens, thereby meeting the requirements for digital music playback on larger displays. It also enables synchronized display and control between the HDMI output and the built-in screen.

Dedicated smartphone control with screen mirroring for full control

The DMP-A1 can be controlled via a dedicated smartphone app. Simply download and install the dp SmartController app (available for iOS and Android). Using the network connection, you can then manage nearly all of the DMP-A1’s functions and system settings—either via the app screen or by mirroring the DMP-A1’s main screen. The app supports file navigation, synchronized display of music data, interactive control via screen mirroring, and control via third-party apps, offering a more convenient and intuitive user experience.

Effortless Control

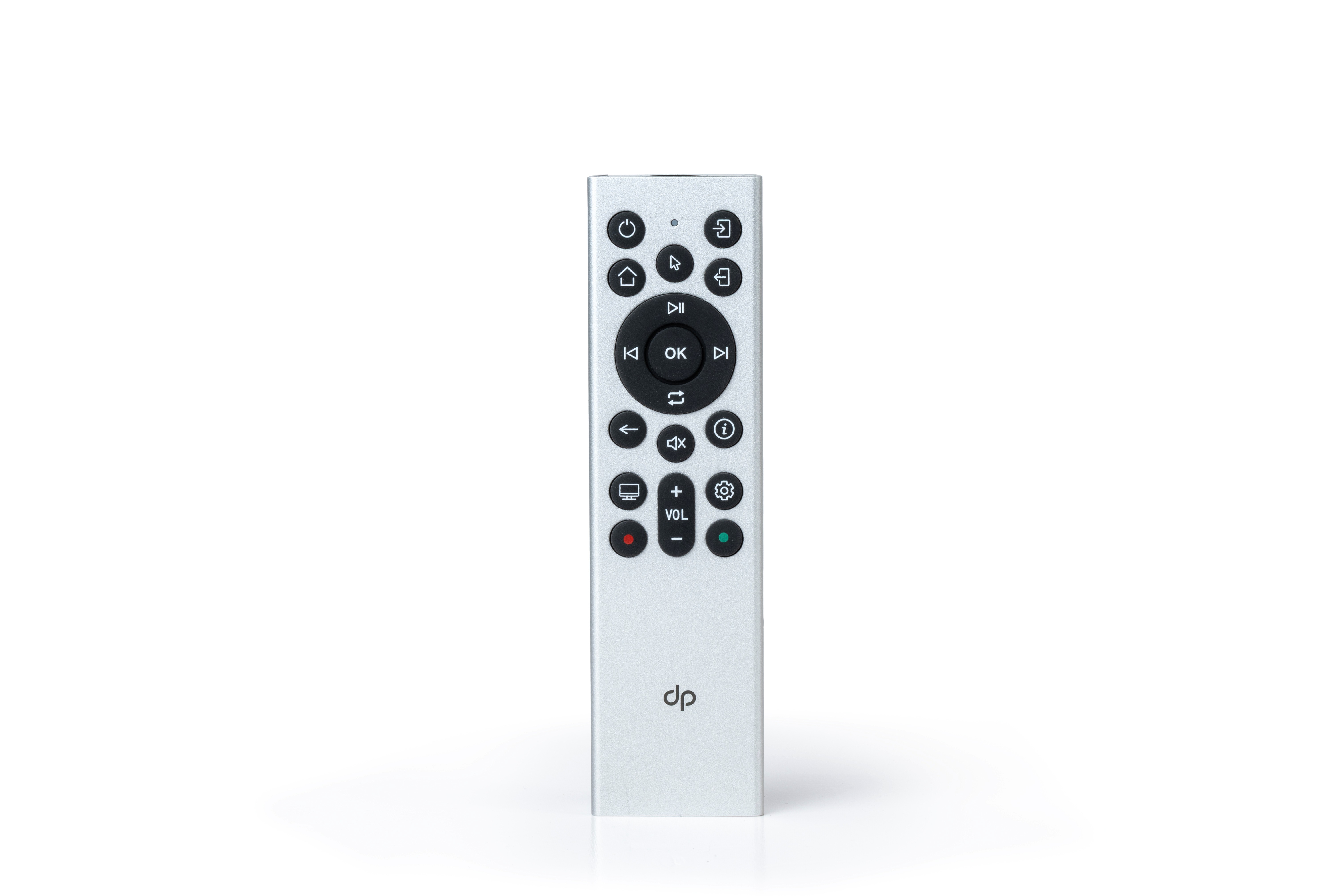

The DMP-A1 offers a variety of control options to suit your different preferences. In addition to intuitive touchscreen operation and control via the smart mobile app, the package also includes a classic aluminum alloy infrared remote control, allowing you to effortlessly control music playback from anywhere and enjoy a truly seamless listening experience.
