Portable DAC/AMP with two CS43198 chipsThe world's first portable DAC/amplifier with a housing made entirely of synthetic resinTwo Cirrus Logic CS43198 32-bit DAC chipsUnique lattice design inspired by a Suzhou garden windowFully handcrafted housing made of 3D-printed resinExtremely low noise levelAdvanced USB technology for lossless transmissionGradual suppression of current rippleHigh-quality 6N single-crystal copper cable with silver-plated Type-C connector3.5mm and 4.4mm dual headphone outputsHigh-resolution 32-bit/768kHz and native DSD256 audio processingSkin-friendly finishPowerful output of up to 300 mW at 16 ΩDesigned according to the philosophy “Hide rhythm in the form, hide sound in the core,” the ICEBORNE is far more than just a typical portable DAC/amplifier that lists technical specifications.It is the world’s first portable DAC/amplifier that is entirely handcrafted from 3D-printed resin material. AFUL has chosen a beautiful Suzhou garden window lattice design with a skin-friendly paint finish from Germany for a smooth, solid surface.The ICEBORNE is designed to be free from overheating and sudden electric shocks, which are common in DAC/amps with standard metal casings.AFUL has equipped the ICEBORNE with two CS43198 DAC chips, which offer high-resolution 32-bit/768 kHz PCM and native DSD256 audio signal processing.With 3.5mm and 4.4mm headphone outputs, the ICEBORNE is compatible with most IEMs and headphones on the market.The device features a powerful output of up to 300 mW per channel at a 16 Ω impedance load.With advanced USB algorithms and a high-purity USB Type-C to Type-C connection cable, the ICEBORNE promises true lossless USB processing, ensuring high-fidelity audio performance for the listener.The world’s first 3D-printed resin DAC/AMPThe AFUL ICEBORNE breaks away from the traditional, cold metal enclosures common in other portable DAC/AMPs and features a precision-crafted housing made of 3D-printed resin. The DAC/AMP is entirely handcrafted and offers a clean, high-quality finish. Each housing is manually assembled and then finely polished using four different grits of sandpaper. Every unit is sealed with a high-quality, skin-friendly lacquer from Germany, which gives the ICEBORNE a silky-smooth feel. Thanks to its resin housing, the AFUL ICEBORNE runs cool without the device heating up.High-Performance Dual DAC ChipsetThe AFUL ICEBORNE features a high-quality dual DAC chipset with two Cirrus Logic CS43198 DAC chips. This 32-bit DAC configuration supports advanced high-resolution audio signal processing and offers support for 32-bit/768 kHz as well as native DSD256 audio signals with an impressive THD+N of less than 0.00037%. The ICEBORNE utilizes an advanced dual-core tuning process with stepwise suppression of current ripple, precise segmentation of ground loops, and manual calibration of thermal noise. This results in an incredibly low noise level of just 1 μV at the 3.5mm output and 1.5 μV at the balanced 4.4mm connector, ensuring that even with highly sensitive electrostatic IEMs, you hear nothing but pure, unadulterated music.Lossless USB Data Transmission TechnologyTo address packet loss, jitter, and latency that often plague conventional USB DACs/amplifiers, AFUL has comprehensively optimized the ICEBORNE’s hardware buffers and clock synchronization protocols. This next-generation USB transmission architecture significantly reduces data packet loss and latency, elevating signal quality to a level that can compete with dedicated optical or coaxial connections. Together with the included high-quality 6N single-crystal silver-plated copper Type-C cable, high-frequency resolution is noticeably improved, and the entire soundstage gains depth and width.Two headphone outputs and high output powerThe AFUL ICEBORNE features two headphone outputs, including a 3.5mm single-ended and a 4.4mm balanced headphone jack. Users can easily pair their preferred IEMs and headphones with the ICEBORNE. With a powerful output of up to 300 mW per channel, the ICEBORNE is powerful enough to drive even demanding headphones with ease.
Hybrid In-Ear Headphones2xDD + 3BA DriversNeutral Studio TuningDual Woofer SystemSonion and Knowles BA DriversCNC-machined Aluminum HousingHigh-Quality Modular Cable3.5mm and 4.4mm ConnectorsObjective NeutralityThe CrinEar Reference is a specially developed in-ear monitor designed for the highest sonic precision. The Reference was developed based on state-of-the-art acoustic research and is designed to be the world’s flattest IEM on the market*, with a focus on transparency, linearity, and repeatable accuracy.*Based on compliance with the population-averaged diffuse-field response (JM-1) with a slope of -1 dB/octave, measured using standard equipment in accordance with ITU-T P.57 Type 4.3Perceived linearityWhile the Reference is designed to achieve objective neutrality on paper, its tuning has been further refined to deliver true perceived linearity. Recognizing the inherent differences between in-ear listening and far-field speaker systems, a subtle boost of approximately 2 dB is applied to the low frequencies to restore the sense of physicality often associated with high-end studio monitors in acoustically treated rooms.This careful adjustment bridges the gap between measurement accuracy and the real listening experience, ensuring that the Reference not only measures flat but also sounds naturally balanced and lifelike in practice.Tuned for the studio – Built for the stageThe CrinEar Reference was developed as a true monitoring tool and delivers realistic, faithful reproduction for critical listening and mix evaluation.With reliable sound balance, precise clarity in the midrange, and controlled low-frequency response, the Reference is designed to be your portable studio monitor, ensuring mixes can be implemented confidently across any room.HODWS ArchitectureThe bass frequencies are handled by a specially developed system featuring two 10-mm dynamic drivers arranged in a horizontally opposed configuration. This Horizontally-Opposed Dual Woofer System (HODWS) allows the two woofers to share their mechanical load, resulting in the following benefits:-Reduced stress on individual diaphragms-Improved bass linearity and control-Improved energy efficiency-More powerful and precise bass reproductionUltimately, this ensures realistic bass reproduction with a flat frequency response. Because “flat bass” should not mean “no bass.”Sonion and Knowles driversMid and high frequencies are reproduced by a carefully engineered arrangement of two Sonion midrange drivers and a single Knowles super tweeter. Each driver is hand-selected to meet our strict tuning targets and then equipped with the most efficient crossover network. CNC-milled aluminum housingAll of the Reference’s drivers are housed in a solid aluminum enclosure precision-machined using a 5-axis CNC process. The contoured, virtually custom-tailored geometry offers:-High structural rigidity to suppress enclosure resonance-Durability that withstands professional use-A secure, comfortable fit, optimized for extended listening sessionsHigh-quality modular cableThe package includes a high-quality, detachable cable with a replaceable connector system:3.5 mm single-ended for universal compatibility4.4 mm balanced for reduced crosstalk and improved channel separationEnjoy flexibility with portable and stationary sources, in both consumer and professional settings, without compromising signal quality.Technical SpecificationsDriver configuration: 2 x 10 mm DD (HODWS) + 3BAImpedance: 16 Ω at 1 kHzSensitivity: 104 dB/mW at 1 kHzFrequency range: 2 Hz to 44,000 HzOpening width: 6.0 mm (lip)Cable material: silver-plated copperIncluded in deliveryS/M/L silicone ear tips (Standard bore)S/M/L silicone ear tips (Small bore)XS/S/M/L silicone ear tips (Wide bore)M foam ear tipsFaux leather case with zipperSPC cable with interchangeable 3.5 mm single-ended and 4.4 mm balanced plugs
Digital Music Player/Streamer/DAC/Preamp/Headphone AmpDigital Music PlayerMusic StreamerNetwork StreamingDACPreampHeadphone AmpAll-in-One - Music Streamer / DAC / Preamp / Headphone AmpThe dorpo DMP-A1 is a state-of-the-art digital music player designed for music lovers who expect top-tier performance combined with the versatility that today’s users need. The DMP-A1 combines first-class digital music playback and file management with network streaming capabilities, making it a DAC, preamplifier, and headphone amplifier all in one elegant device.Exquisite Exterior Design Based on High-Quality Audio TechnologyThe DMP-A1 combines a robust enclosure structure with an exquisite exterior design. It features a reinforced chassis made of a solid aluminum alloy, manufactured using high-precision CNC machining, an integrated center frame, and an exceptional matte metal finish. The rounded corners ensure excellent chassis rigidity; the chassis is securely clamped at the top and bottom, forming the perfect platform for the electronics. The silky-smooth volume control with customizable, colorful “Dynamic Light Ring” lighting effects adds a touch of style to the overall package.By combining classic, high-quality design with modern elements, the DMP-A1 perfectly caters to the preferences of audiophiles and music lovers alike.5-inch HD touchscreen LCD display with an exceptionally smooth user interfaceThe DMP-A1 features a 5-inch 1080p color LCD touchscreen with high-resolution display, smooth capacitive touch control, a user-friendly interface, and powerful digital player functions that enable both visually impressive and intuitive user interaction.“Smart Ring” backlighting on the rotary control for a more dynamic musical experienceThe volume control on the front of the DMP-A1 features a “Smart Ring” design element that serves both as a device status indicator and as ambient lighting. It supports customizable multicolor lighting effects: for example, when the device powers up, the ring glows with a “breathing” effect, and during music playback, it can “dance” to the rhythm of the audio spectrum, creating a fully immersive listening atmosphere.Built-in high-performance balanced headphone amplifierThe DMP-A1 features a professional headphone amplifier that offers both a 6.35-mm single-ended and a 4.4-mm fully balanced output. Thanks to outstanding technical specifications and high drive power with two gain levels (high/low), it can easily drive a variety of headphones with an impedance ranging from 16 to 300 Ω.Uncompromising ConnectivityThe DMP-A1 is designed to serve as the central hub of your audio system. It features a comprehensive selection of digital inputs—including optical, coaxial, and HDMI ARC connections—to connect all your sources. Both RCA and fully balanced XLR preamp outputs are available, ensuring clean, high-resolution signal transmission. With built-in high-speed wired and wireless networking capabilities, as well as system trigger and USB expansion ports, it offers both versatility and precise control, forming the reliable core of a modern listening environment.Quad-Core 64-Bit ARM Cortex-A55 ProcessorPowered by a high-performance quad-core processor, the DMP-A1 is capable of seamless multitasking and decoding. From loading large files to processing high-resolution audio streams, the DMP-A1 handles every task with ease.Experience Effortless Performance4 GB of RAM ensures seamless multitasking and lightning-fast data access, while the 64 GB of internal storage provides ample space for all your content. Together, they deliver faster processing, lower latency, and a lag-free experience.Integrated M.2 SSD Slot for More Flexible ExpansionFor high-quality media storage, the DMP-A1 not only offers extensive USB expansion options and support for network storage but also features an externally accessible, tool-free M.2 NVMe 3.0 2280 SSD slot. Users can easily install or replace SSDs without having to disassemble the device, allowing for expansion up to 8 TB of SSD capacity. This ensures faster, more stable, and completely silent high-performance local storage.High-Performance Linear Power Supply and Low-Noise Switching Power SupplyThe DMP-A1 features a dual-power-supply design that combines a high-performance linear power supply with a low-noise switching power supply. The low-noise, regulated power supply module primarily powers the digital circuits, while the professional linear power supply is specifically designed for analog circuits. By reducing ripple and interference, it ensures a cleaner power supply to the audio circuits, a quieter background, and outstanding sound clarity. In addition, the entire power supply module features a fully enclosed metal shield to effectively isolate interference between power and signal circuits.High-Performance ESS ES9039S Pro DACThe DMP-A1 utilizes ESS’s latest flagship DAC chip, the ES9039S Pro, which is considered the industry benchmark for performance. With lower total harmonic distortion, it ensures minimal noise and distortion, delivering exceptional sound quality with captivating and fatigue-free audio reproduction—for an authentic high-fidelity listening experience.Third-Generation XMOS 316 Audio InterfaceThe DMP-A1 utilizes the third-generation XMOS 316 audio processor, which features higher processing speeds and expanded USB bandwidth to ensure lossless transmission of high-resolution audio data. The USB interface supports formats up to DSD512 Native, PCM768@32bit, and full MQA decoding. The optical and coaxial connections also support DSD64 (DoP) and PCM192@24Bit.Low-jitter dual-clock synchronization for greater precisionThe DMP-A1’s audio clock system is based on a low-jitter, high-precision dual-clock design. Two high-precision quartz oscillators (45.1584 MHz and 49.152 MHz) each control multiples of the 44.1 kHz and 48 kHz sampling frequencies, effectively reducing jitter for more accurate audio decoding.Fully balanced, monitor-quality preamp output for superior sound qualityThe DMP-A1’s analog audio circuitry is based on a fully balanced amplifier architecture. From the DAC to all analog output connectors (XLR, RCA, headphones), signals are processed via fully balanced differential amplifier circuits, which eliminate common-mode crosstalk, improve channel separation, and ensure higher noise immunity to prevent unwanted noise. To prevent potential signal interference when using both RCA and XLR outputs simultaneously, independent output selection is supported to ensure higher audio specifications and better sound quality. The fully balanced preamplifier circuit enables precise preamplifier volume control without the need for additional external preamplifiers.High-Quality Audiophile Components for Uncompromising Sound OptimizationThe DMP-A1’s analog output circuit uses carefully selected premium components from around the world to achieve monitor-grade audiophile sound quality. No expense was spared to ensure purer, more authentic sound reproduction.Professional Bluetooth module with high-definition Bluetooth technologyThe DMP-A1’s Bluetooth audio receiver features a powerful Qualcomm QCC5181 Bluetooth 5.4 module that supports numerous codecs such as AAC and SBC, among others. With audio transmission up to 96 kHz/24-bit, it enables convenient wireless playback from smartphones, computers, or tablets while delivering a CD-quality listening experience.Deeply Customized dp Funplay UI SystemThe DMP-A1 features a comprehensively customized Funplay UI system based on the Android 12 platform, developed specifically for digital music playback devices. With a sophisticated dp desktop interaction system and a powerful music library management system featuring a multi-play function, the DMP-A1 offers all the essential features music lovers and audiophiles need to enjoy their music—whether via a third-party streaming service or locally stored content.dorpop Music Player, the expert in high-resolution audio playbackThe in-house developed dp Music Player supports the playback and decoding of lossless music formats such as SACD-ISO, DFF, DSF, FLAC, WAV, APE, DTS, and MQA with a maximum sampling rate of up to DSD 512/PCM 768 kHz. The system completely bypasses SRC limitations and supports native, original sampling as well as direct output of high-resolution audio from third-party apps. The DMP-A1’s optical, coaxial, and USB inputs fully support decoding of the three MQA master formats: “MQA,” “MQA Renderer,” and “MQA Studio.”Comprehensive Support for Popular Music ServicesThe DMP-A1 also serves as a powerful streaming media player with built-in support for popular global online music services such as Tidal, Spotify, Qobuz, Deezer, Apple Music Hi-Res Audio, and Amazon.DMP-A1 Streaming Services*Streaming services will be installed and added over time via wireless firmware updates as certification progresses.*Please note: “Roon Ready” will be available shortly in a future firmware updateComprehensive network streaming and convenient push playback from mobile devicesThe DMP-A1 also supports push playback of network music streams from mobile devices via Roon Ready, Spotify Connect, Qobuz Connect, AirPlay, DLNA, Bluetooth, and other services.*Network streaming features will be installed and added over time via wireless firmware updates as certification progresses*Please note: “Roon Ready” will be available shortly in a future firmware updateSmart features for syncing and managing your music libraryThe dp Music Player is not only a professional music player compatible with all types of lossless formats, but also intelligent music management software. It supports online data synchronization and helps you accurately locate locally stored tracks, including dynamic lyrics, album and artist information, and more. For extensive local music collections, it automatically categorizes them by album, genre, artist, and sampling format. It also supports user-friendly features such as creating favorite playlists and precise track search, thereby meeting even the demands of the most passionate audiophiles.Powerful dp File Manager for Easier File ManagementThe dp File Manager supports access to and management of extensive local storage, network-attached NAS devices, and various cloud storage services. It enables flexible file operations such as editing, copying, pasting, deleting, and adding to favorites, providing an efficient and user-friendly file management experience.SMB/NFS Network SharingIn addition to its built-in SSD storage and extensive USB expansion options, the DMP-A1 supports LAN NAS access via SMB or NFS protocols for fast playback of high-bitrate media files from network devices. It can also function as an SMB server, allowing other devices on the local network to access and manage the shared storage via IP—for greater flexibility.CD Playback and Lossless RippingThe DMP-A1 supports external USB optical drives for CD playback and ripping. Since no additional, expensive CD player is required, you can enjoy your valuable physical album collections at any time, making your music experience more diverse and enriching.Customizable Playback Interface, Spectrum Display, and VU Meter OptionsThe music player offers several customizable playback interfaces for audiophiles, including dynamic VU meters and various spectrum display styles that can be switched between for all music formats with the touch of a button.---Dual-Screen Support for a Large-Screen Experience--In addition to the user interface on the built-in screen, the DMP-A1 supports an HDMI output for connecting to large screens, thereby meeting the requirements for digital music playback on larger displays. It also enables synchronized display and control between the HDMI output and the built-in screen.Dedicated smartphone control with screen mirroring for full controlThe DMP-A1 can be controlled via a dedicated smartphone app. Simply download and install the dp SmartController app (available for iOS and Android). Using the network connection, you can then manage nearly all of the DMP-A1’s functions and system settings—either via the app screen or by mirroring the DMP-A1’s main screen. The app supports file navigation, synchronized display of music data, interactive control via screen mirroring, and control via third-party apps, offering a more convenient and intuitive user experience.Effortless ControlThe DMP-A1 offers a variety of control options to suit your different preferences. In addition to intuitive touchscreen operation and control via the smart mobile app, the package also includes a classic aluminum alloy infrared remote control, allowing you to effortlessly control music playback from anywhere and enjoy a truly seamless listening experience.
Universal 8K UHD Media PlayerProfessional 8K Processor S928X-K8 GB DDR4 + 64 GB eMMCDolby Vision HDR10+Dual certification by Dolby and DTSFunplayUI 2.0 systemIntegrated SATA 3.0 hard drive bayThe dorpo UHP3001 impresses not only with its user-friendliness,but also with its video and audio performanceNo matter how you watch or listen to your content—the heart of every home entertainment system must be a media player that can do it all.The UHP-3001 was designed for audio and video enthusiasts who want top-notch performance in a chassis that looks just as good on a hi-fi system as it does tucked away in a 19-inch rack.The dorpo UHP-3001 is packed with features and technologies, offering powerful 8K decoding capabilities as well as support for a wide range of high-quality standard audio and video formats.With Dolby Vision, Dolby Atmos technology, and original Blu-ray discs, the UHP-3001 integrates dorpo’s proprietary FunplayUI 2.0—a fully customized, Android-based system that delivers an unparalleled 8K home theater experience.Streaming couldn’t be easier on the UHP-3001, as the Android-based system allows users to download apps of their choice—from Amazon Prime to YouTube to Plex for videos—while Tidal, Spotify, and Apple Music (among others) cater perfectly to music lovers. Downloaded content is easily accessible and can be stored directly on the device by connecting a hard drive via the rear port.The UHP-3001 impresses not only with its convenience, but above all with the quality of its performanceHigh-quality DACs and video processing bring even the most outdated TV screens to life, with upscaling available for the very best display devices. Since most older 4K screens tend to lose performance due to their electronics rather than the display itself, using a UHP-3001 makes a significant difference in picture quality.Control is incredibly simple thanks to the in-house FunplayUI, which includes the proprietary dp Player and Music Player and offers an impressive library for finding your content. Our dp SmartController app (available for iOS and Android) is compatible with the entire range of dorpo media players and allows for full control of any dP media player.A media player that can do it all? The UHP-3001 could be the product that revolutionizes your home entertainment experience and brings everything together in a single ecosystem.Unmatched Performance and Stunning Picture QualityPowered by Amlogic’s latest professional 8K processor, the S928X-K, the UHP-3001 features a five-core CPU, advanced 12-nm process technology, and 3.2 TOPS of computing power, ensuring outstanding performance and efficient multitasking. Equipped with a dedicated 8K GPU, it supports Dolby and DTS dual-audio decoding and effortlessly handles the playback of ultra-high-quality 8K video and audio—for a cinematic, smooth, and immersive experience. With 8 GB of DDR4 RAM for faster data transfer and 64 GB of built-in storage, users can install a wide variety of apps to meet their diverse entertainment needs.Extremely large built-in storage capacity8 GB DDR + 64 GB eMMCMore than twice as much built-in storage space as professional media playersThe larger storage capacity ensures greater efficiency in data transfer and shorter read and write times, thereby improving and accelerating data processing and computing performance.Professional Installation and Comprehensive ConnectivityThe UHP-3001 was designed for custom home theater installations and features a 430-mm chassis with high-quality craftsmanship that fits perfectly with professional AV rack standards. It offers an extensive selection of ports, including HDMI 2.1, USB 3.0 and USB 2.0, optical audio output, RCA stereo output, RS232 control, trigger input/output, IR input, and a SATA 3.0 hard drive bay. This ensures seamless compatibility with various AV devices, whether for a living room setup or a dedicated home theater.Elegant design, robust construction, expandable storageSolid all-metal interior constructionThe UHP-3001 was developed for custom home theater installations and features a 430-mm chassis with premium build quality—a complete package that looks just as good on a hi-fi setup as it does hidden in a 19-inch rack.Integrated SATA 3.0 hard drive bayThe UHP-3001 is equipped with an integrated, removable SATA 3.0 hard drive bay and supports hard drives with an extremely high capacity of up to 24 T, offering high read speeds to meet the diverse requirements for storing and playing back audio and video data.The tool-free quick-release design offers users maximum convenience and flexibility and makes it easy to expand storage capacity.Gigabit LAN and Wi-Fi 6Significantly faster and more stable high-speed networksGigabit high-speed Ethernet interfaceSupports 2.4 GHz and 5 GHz dual-band Wi-Fi as well as Bluetooth 5.2Integrated, concealed high-performance antennaEquipped with a Wi-Fi 6 protocol moduleHigh-Fidelity Audio & Precision EngineeringTo deliver studio-quality sound, the UHP-3001 integrates a powerful, standalone AKM4432 DAC for an extremely low-noise analog audio output. It also features a specially developed NXP dual-channel power supply with independent modules for the motherboard and hard drive, ensuring a clean and stable power supply for reference-quality Blu-ray playback.Dolby VisionThanks to built-in Dolby Vision technology, images are more realistic and vibrant.Enjoy an even more immersive visual experience.Dolby Vision offers a wider dynamic range of light and shadow, better performance, and outstanding image depth.Every single frame is brighter, more vivid, and more profound.Dolby Vision TechnologyCommercial Image Processing Engine VS12All dorpo players utilize Dolby Vision’s commercial image enhancement engine with its powerful data conversion algorithm.Regardless of the source’s dynamic range, the best possible picture quality is delivered.Precise frame rate adjustment for smoother images and transitions.In addition to precise output of standard integer frame rates (24 fps, 25 fps, 30 fps, 50 fps, 60 fps, 120 fps), the dp player also supports pinpoint adjustment of the frame rate at 23.976 fps, 29.97 fps, 59.94 fps, and other raw frame rates from films. This effectively eliminates pauses caused by the dynamic playback system’s interpolation and ensures a smoother picture.HDR10+By utilizing dynamic metadata in every scenario and adjusting individual framesfor real-time image processing, richer details and more natural transitions between light and shadow are ensured.Smooth, detailed, and true to life12-bit color depth – Offers 68 billion rich colorsThe wide BT.2020 color space covers 75% of the color space visible to the naked eyeThe UHP-3001 supports native output at 7680 × 4320 at 60 Hz, offering four times the pixel density of 4K for breathtaking detail, even on screens with a diagonal of over 100 inches. In addition to the standard HDR10/HLG formats, it also supports HDR10+ and Dolby Vision:– HDR10+: Uses dynamic metadata to optimize each scene for richer contrast and smoother color gradients.– Dolby Vision: Offers higher brightness, deeper blacks, and lifelike colors for an unparalleled visual experience.The Dream Player for Blu-ray FansThe built-in dorpo Media Player supports all common 8K codecs (H.265, AV1, VP9, AVS3, AVS2) and virtually every media format, including:– Blu-ray (BDMV, ISO)– MKV, TS, M2TS, MP4Thanks to its Dolby Atmos and DTS:X HD MA certification, it decodes and reproduces lossless, immersive audio, bringing cinema-quality 3D sound into your home.RC05 Backlit Remote Control / IR Learning Function / Air Mouse / BluetoothTo meet the demands of home theater and media room environments, the UHP-3001 is equipped with an all-new, motion-sensor-controlled, backlit Bluetooth remote control. The motion-activated backlighting is perfect for use in media rooms or in low-light conditions at night, ensuring more convenient operation and a well-thought-out user experience. In addition to omnidirectional Bluetooth control, it features a built-in 6-axis gyroscope for effortless air mouse functionality, enabling precise navigation and clicks when browsing content in specific application scenarios. Furthermore, it supports the infrared learning function, which allows you to easily replicate the function buttons of infrared remote controls for other AV devices.FunplayUI 2.0 and SmartController App – Easy Navigation and ControlWith its 4K resolution, our proprietary Android-based operating system, FunplayUI 2.0, offers ultimate performance for effortlessly navigating, organizing, and enjoying your content. By quickly scanning all content stored on the device, FunplayUI 2.0 automatically downloads both video and audio metadata to deliver crystal-clear images and a well-organized library. Navigation through UHD Blu-ray content, subtitles (with customizable options), and music metadata is superbly presented and easy to use.When used in conjunction with FunplayUI 2.0, the dp SmartController app allows for easy management of all dorpo devices on your local network and offers more convenient remote control, seamless browsing and streaming of local files, and an unparalleled audio and video playback experience.
8K Smart Media PlayerProfessional 8K Processor S928X-K4 GB DDR + 64 GB eMMCDolby Vision HDR10+Dual certification by Dolby and DTSFunplayUI 2.0 systemOutstanding performance and qualityWith its 8K picture quality and a high-quality audio DAC chipset, the X3 is the perfect media player for both single- and multi-screen setups.The dorpo X3 is packed with features and technologies, offering powerful 8K decoding capabilities as well as support for a wide range of high-quality standard audio and video formats. Equipped with Dolby Vision, Dolby Atmos technology, and original Blu-ray discs, the X3 integrates the in-house developed FunplayUI 2.0—a comprehensively customized, Android-based system that delivers an unparalleled 8K home theater experience.Streaming couldn’t be easier on the X3, as the Android-based system allows users to download apps of their choice—from Amazon Prime to YouTube to Plex for videos—while Tidal, Spotify, and Apple Music (among others) cater perfectly to music lovers. Downloaded content can be conveniently accessed via an external hard drive connected through the USB 3.0 port.The X3 impresses not only with its convenience but also with the quality of its performance. High-quality DACs and video processing bring even the most outdated TV screens to life, with upscaling available for the very best display devices. Since most older 4K screens suffer more from their electronics than from the display itself, using the X3 makes a noticeable difference in performance.Control is incredibly simple thanks to the in-house FunplayUI, which includes the proprietary dp Player and Music Player and offers an impressive library for finding your content. Dorpo’s dp SmartController app (available for iOS and Android) is compatible with the entire range of dP media players and allows for full control of any dP media player.With its compact design combined with an extensive feature set, the X3 is the perfect product for anyone looking to upgrade older screens and/or build a connected AV system.Unmatched Performance & Impressive Picture QualityPowered by Amlogic’s latest professional 8K processor, the S928X-K, the X3 features a five-core CPU, advanced 12-nm process technology, and 3.2 TOPS of computing power, ensuring outstanding performance and efficient multitasking. Equipped with a dedicated 8K GPU, it supports Dolby and DTS dual-audio decoding and effortlessly handles the playback of ultra-high-quality 8K video and audio—for a cinematic, smooth, and immersive experience. With 4 GB of DDR4 RAM for faster data transfer and 64 GB of built-in storage, users can install a wide variety of apps to meet diverse entertainment needs.Extremely large built-in storage capacity4 GB DDR + 64 GB eMMCMore than twice as much built-in storage as professional media players.The larger storage capacity ensures greater efficiency in data transfer and shorter read and write times.Improves and accelerates data processing and computing performance.A wealth of AV interfaces—ideal for any applicationThe X3 was designed for use in the TV sector, and with its compact design, it fits just as well behind a TV screen as it does in an AV rack or even in a 19-inch rack mount. It features an extensive selection of ports, including HDMI 2.1, USB Type-C, USB 3.0, USB 2.0, optical audio output, 3.5-mm stereo output, and RS232 control. This ensures seamless compatibility with various AV devices, whether for a living room setup or a dedicated home theater.Elegant Design, Robust ConstructionPerfect for Any ApplicationWith its one-piece high-gloss finish and exquisite, matte-finished aluminum alloy cover, the X3 looks just as good blending discreetly into the background as it does standing out as an eye-catcher in an AV rack.Beautifully Designed—Inside and OutThe X3 is designed for use in a wide range of applications, which is why just as much attention has been paid to its internal design as to its stunning exterior.Its housing features a one-piece, high-gloss black finish, with rounded edges that add both style and stability.Gigabit LAN & Wi-Fi 6Significantly faster and more stable high-speed networksWith a Gigabit high-speed Ethernet interfaceSupports 2.4-GHz and 5-GHz dual-band Wi-Fi as well as Bluetooth 5.2Integrated, concealed high-performance antennaEquipped with a Wi-Fi 6 protocol moduleHigh-Fidelity Audio & Precision EngineeringTo deliver studio-quality sound, the X3 integrates a powerful, standalone AKM4432 DAC for extremely low-noise analog audio output. It also features a specially developed, integrated full-power power supply, eliminating the need for unsightly and noisy external power adapters.True 8K Ultra HD with Advanced HDR SupportOutput for true 8K decoding? True 8K hardware decoding?Embark on a new era of breathtaking, flawless picture quality.A finer, more realistic picture—truly exquisite.Dolby VisionThanks to built-in Dolby Vision technology, images are more realistic and vibrant.Enjoy an even more immersive visual experience.Dolby Vision offers a wider dynamic range in highlights and shadows, better performance, and exceptional image depth.Every single frame is brighter, more vibrant, and deeper.Dolby Vision TechnologyCommercial Image Processing Engine VS12All dp players utilize Dolby Vision’s commercial image enhancement engine with its powerful data conversion algorithm.Regardless of the source’s dynamic range, the best possible picture quality is displayed.Precise frame rate adjustment for smoother images and transitionsIn addition to precise output of standard integer frame rates (24 fps, 25 fps, 30 fps, 50 fps, 60 fps, 120 fps), the dp player also supports precise adjustment to 23.976 fps, 29.97 fps, 59.94 fps, and other raw frame rates from films. This effectively prevents stuttering caused by the dynamic playback system’s interpolation and ensures a smoother picture.HDR10+By using dynamic metadata in every scenario and adjusting individual framesfor real-time image processing, richer details and more natural transitions between light and shadow are ensured.Smooth, refined, and lifelike12-bit color depth—offers 68 billion rich colorsThe wide BT.2020 color space covers 75% of the color space visible to the naked eyeThe X3 supports native output at 7680 × 4320 at 60 Hz, offering four times the pixel density of 4K for breathtaking detail—even on screens with a diagonal of over 100 inches. In addition to the standard HDR10 and HLG formats, it also supports HDR10+ and Dolby Vision:HDR10+: Uses dynamic metadata to optimize each scene for richer contrast and smoother color gradients.Dolby Vision: Offers higher brightness, deeper blacks, and true-to-life colors for an unparalleled visual experience.The Dream Player for Blu-ray FansThe built-in dorpo Media Player supports all common 8K codecs (H.265, AV1, VP9, AVS3, AVS2) and virtually every media format, including:– Blu-ray (BDMV, ISO)– MKV, TS, M2TS, MP4Thanks to its Dolby Atmos and DTS:X HD MA certification, it decodes and reproduces lossless, immersive audio, bringing cinema-quality 3D sound into your home.RC05 Backlit Remote Control / IR Learning Function / Air Mouse / BluetoothTo meet the demands of home theater and media room environments, the X3 is equipped with an all-new, motion-sensing, backlit Bluetooth remote control. The motion-activated backlighting is perfect for use in media rooms or in low-light conditions at night, ensuring more convenient operation and a well-thought-out user experience.In addition to omnidirectional Bluetooth control, it features a built-in 6-axis gyroscope for effortless air mouse functionality, enabling precise navigation and clicks when browsing content in specific application scenarios. Furthermore, it supports the infrared learning function, allowing it to easily emulate the function buttons of infrared remote controls for other AV devices.FunplayUI 2.0 and SmartController App – Easy Navigation and ControlWith its 4K resolution, our proprietary Android-based operating system, FunplayUI 2.0, delivers ultimate performance for effortlessly navigating, organizing, and enjoying your content. By quickly scanning all content stored on the device, FunplayUI 2.0 automatically downloads both video and audio metadata to ensure crystal-clear images and a well-organized library. Navigation for UHD Blu-rays, subtitles (with customizable settings), and music metadata is superbly presented and easy to use.When used in conjunction with FunplayUI 2.0, the dp SmartController app allows for easy management of all dorpo devices on your local network and offers more convenient remote control, seamless browsing and streaming of local files, and an unparalleled audio and video playback experience.
Tribrid In-Ear HeadphonesUnique IEM design inspired by Ao BingBrand new Tribrid IEMs with seven drivers1 dynamic driver + 4 balanced armature drivers + 2 planar driversDual system Physical + electronic four-way crossover systemOne DD for dynamic bassTwo custom-made BA drivers for precise midsTwo custom-made BA drivers for clear highsTwo custom-made micro planar drivers for extended ultra-highsTuned for a clear, natural, and lifelike sound profileComfortable ear tips, developed in collaboration with HeyGearsHigh-purity silver-plated single-crystal copper cableLitz braid configurationPatented Q-Lock Mini system with interchangeable connector terminalsThree exclusive trading cards with motifsPremium set of ear tips (DUNU S&S, Candy, Balanced Ear Tips)DUNU introduces the brand new DN142 IEMs, a beautifully crafted pair of in-ear monitors featuring a seven-driver tribrid configuration on each side. Equipped with one dynamic driver, four custom balanced armature drivers, and two custom planar drivers, the DN142 promises high-resolution sound reproduction with exceptional clarity and dynamics across a wide frequency range. DUNU has incorporated a specially designed physical + electronic four-way crossover that precisely combines the drivers to provide users with a pure, natural, and lifelike sound experience. The DUNU DN142 was developed in collaboration with HeyGears, the industry's leading provider of 3D printing solutions. The 3D-printed resin ear cups weigh only 5.6 grams and ensure a high level of comfort. Get the DUNU DN142 today and take your mobile music experience to the next level.Deep as the ocean, lively as the wavesThe DUNU DN142 is largely inspired by Ao Bing, a lively character from the world of Nezha. If Nezha is a burning flame characterized by exciting red and yellow patterns, then AO Bing is the deep and turbulent sea. The DN142 Ao Bing Edition pays homage to classic Eastern aesthetics and inner strength. The pair conveys a calm and expansive profile through its soft, natural, and lifelike sound.Their latest tribrid model is hereDUNU has many years of experience in developing high-quality in-ear monitors with multi-driver hybrid driver configurations. The DUNU DN142 is a companion to the recently introduced DN242 with a similar tribrid driver configuration. As you might guess, the name DN142 refers to the driver configuration of the pair. It features a tribrid configuration with seven drivers on each side, including one dynamic driver, four balanced armature drivers, and two micro-planar drivers. This seven-driver configuration delivers high-quality sound across a wide frequency range.Electronic+physical four-way crossover systemTo get the most out of each driver unit and ensure extremely low distortion from multiple drivers, DUNU has equipped the DN142 with a professional electronic+physical four-way crossover system. We have combined four independent acoustic channels with a precisely tuned electronic chipset to achieve clear and accurate sound reproduction. This crossover precisely controls each frequency range, ensuring exceptional coherence and seamless transitions between bands. The pair features a dynamic driver for clear, defined, and powerful low-frequency reproduction. It uses two custom-designed balanced armature drivers for natural vocals and detailed instruments in the midrange. Two additional custom-designed balanced armature drivers provide a clearly defined high-frequency band. Finally, we have two custom-designed micro-planar drivers responsible for reproducing the ultra-high-frequency band. Enjoy the seamless performance of the DN142 with its precise and accurate physical and electronic four-way crossover system.Vibrant design, maximum comfortThe DUNU DN142 promises maximum comfort for its users. The pair was developed in collaboration with HeyGears, the industry's leading provider of 3D printing solutions. The shells are extremely comfortable as they are lightweight and ergonomically shaped. DUNU has designed the pair in a vibrant color profile inspired by AO Bing. The face covers reflect the depth and energy of Ao Bing. DUNU also includes three collector cards in the package, two of which are printed with unique artwork inspired by Ao Bing's serene image.High-purity cableDUNU supplies the DN142 with a high-purity, silver-plated single-crystal copper cable. The cable has a litz braid configuration and features DUNU's patented Q-Lock Mini system with interchangeable plugs, with 3.5 mm and 4.4 mm plugs included.Technical informationImpedance: 37 Ω.Sensitivity: 107 dB/mW.Frequency range: 5 Hz to 40 kHz.THD+N: <0.5%.Cable: 4-core silver-plated single-crystal copper cable.Connectors: 3.5 mm + 4.4 mm.Plug type: 0.78 mm 2-pin plug.Scope of deliveryDN142Carrying caseCable with 3.5 mm and 4.4 mm plugsS&S ear tipsCandy ear tipsBalanced ear tips
Upgrade headphone cableLitz Type 2 structure system24AWG wire diameter2.5mm, 4.4mm balanced, and 3.5mm single-endedMMCX and 2-pin versions availableLitz Type 2 Structure DesignWith the Litz Type 2 structure, the single-strand wire has 20 conductors, 4 cores, and a total of 480 strands of secondary refinement of Furukawa single-crystal copper. With exceptional construction and high-quality materials, it delivers sound improvement in all aspects.24 AWG wire diameterSingle-strand core with a diameter of 24 AWG, with a larger conductor diameter and cross-sectional area, effectively reduces resistance and transmission loss to ensure audio quality.Includes 2.5 mm balanced + 3.5 mm single-ended and 4.4 mm balanced connectorsThe Lyre Pro features the interchangeable mini plug system with 2.5 mm balanced, 3.5 mm single-sided, and 4.4 mm balanced plugs. Compatible with mainstream portable balanced and unbalanced devices. Optional connectorsAvailable with MMCX or 0.78-2-pin connectors

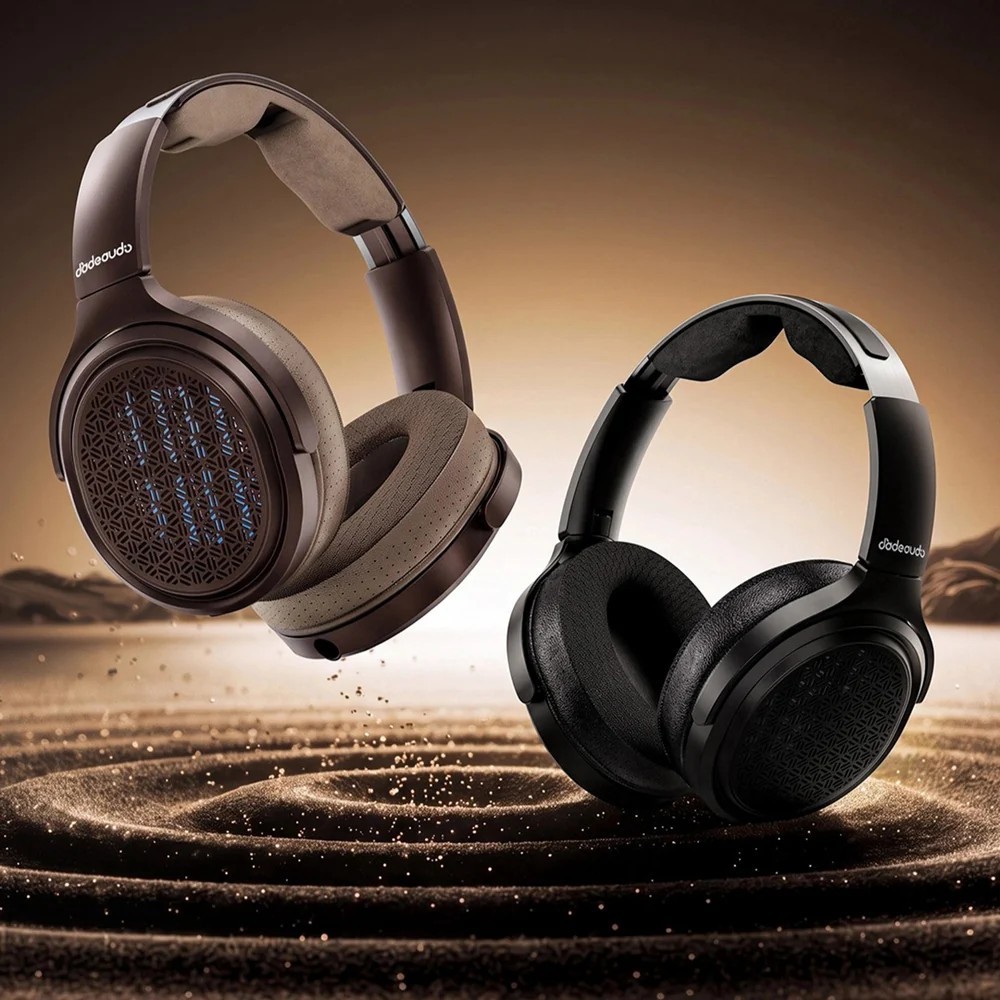

Open-back, dynamic headphonesUltra-thin carbon fiber diaphragm50mm dynamic driverHigh-flux N52 magnetic circuitNorth American black walnut housingErgonomic, adjustable fitHigh-purity single-crystal copper cableQ-Lock mini connector systemImmersive, natural soundstageDesigned for listeners who value the essence of sound, the DUNU Mortise delivers a warm, rich, and full-bodied listening experience. Vocals sound structured and harmonious, the bass is deep and controlled, while the highs fade gently without harshness or sibilance. Its spacious, well-structured sound remains fatigue-free even during long listening sessions and is ideal for pop, vocals, and instrumental music.Open-back acoustic architectureThe open design minimizes internal reflections and interference from standing waves, allowing the sound to spread naturally. This expands the width and depth of the soundstage and ensures precise imaging as well as an immersive, balanced listening experience that remains comfortable even during extended use. The sound imaging is relaxed yet precise, with clearly defined spatial positioning.Ultra-thin carbon fiber dynamic driverEquipped with a 50-mm full-range driver featuring a high-flux-density N52 neodymium magnet circuit, the ultra-thin carbon fiber diaphragm ensures stable, linear performance. The W-shaped diaphragm profile and flexible surround system minimize distortion while improving detail reproduction and resolution across the entire frequency spectrum.This configuration delivers ample power and precise transient response. It reduces unwanted distortion while improving speed and control.Adaptive Ergonomic StructureThe Mortise’s headband features an adaptive suspension design that naturally adapts to different head shapes and distributes pressure evenly across the crown. A carefully tuned elastic steel frame provides stable support with minimal clamping force, ensuring a secure yet relaxed fit. Soft, highly elastic memory foam ear pads preserve acoustic integrity while offering long-lasting comfort.North American black walnut housingThe housing is crafted from carefully selected North American black walnut, prized for its naturally warm grain and understated character. Beyond its aesthetic appeal, the material offers beneficial internal damping properties that help control resonance and reduce unwanted high-frequency artifacts.Warm and Rich SoundThe Mortise’s tuning leans toward a warm, full-bodied sound. Vocals are richly textured, the low frequencies extend deep with controlled impact, and the highs are gently defined. Thanks to the balance between resolution and long-term comfort, the sound is spacious and relaxed, offering a refined listening experience.High-purity single-crystal copper cableThe detachable cable consists of high-purity single-crystal copper conductors, ensuring efficient signal transmission with minimal loss and interference. A nylon outer jacket provides additional vibration damping and helps preserve fine details and maintain a clear, natural soundstage. It features the Q-Lock Mini connector system with both 3.5 mm single-ended and 4.4 mm balanced connectors, as well as a 3.5 mm to 6.35 mm adapter. This ensures compatibility with a wide range of portable and stationary audio devices, as well as future-proof flexibilityPremium carrying caseThe package includes a custom-made fabric carrying case that provides premium protection for your headphones and accessories.
Dynamic in-ear headphones10 mm dynamic driverGunmetal gray die-cast metal, alloy front plateRigid flex composite diaphragmHigh-density alloy chamberSingle crystal copper wire with silver coatingDUNU Titan XThe new DUNU Titan X is hereEquipped with a dual-magnetic, dual-chamber high-performance dynamic driver unit, the Titan X redefines the entry-level market for in-ear headphones with its high-density metal alloy construction.It features a highly rigid dome with a flexible hybrid diaphragm.Perfectly tunedDUNU has tuned the Titan X with precise adjustments for true hi-fi sound reproduction.The pair offers a three-dimensional soundstage with captivating and immersive music reproduction.High-quality workmanship, exquisite craftsmanshipDUNU has crafted the Titan X's ear cups from a high-density metal alloy.The pair has a smooth, chrome-plated finish that gives it solid durability and high scratch resistance. It's not just about looks, but also about controlling internal sound wave resonance.Comfortable for long listening sessionsDUNU has studied a large amount of data on the shapes of the human ear and designed the pair with an optimized shape for greater comfort.Three types of ear tips are included, including DUNU's Candy and Balance ear tips.Next-generation dynamic driver with two chambers and two magnetsThe Titan X features a new-generation dynamic driver with two chambers and two magnets.This new acoustic core features a highly rigid dome with a flexible hybrid diaphragm for top-level performance.Hybrid diaphragm for pure sound reproductionWith its highly rigid dome and flexible suspension, the DUNU Titan X achieves pure hi-fi sound with a balanced frequency response across three frequency ranges and a natural sound image across the entire band.Enjoy a pleasant listening experience with the new Titan X.Dual magnet design with high magnetic fluxDUNU has optimized the Titan X with an internal + external dual magnet circuit system.It generates a strong magnetic flux, improves output power, and optimizes frequency response across the entire frequency range.This ensures stable, high-purity sound reproduction from various source devices.Hi-Fi decoding with Type-C versionThe Titan X Type-C variant features an integrated Hi-Fi DSP chipset that enables high sound quality, perfect for both music and gaming.It also has a built-in microphone for calls and official meetings.Universal connectivity 3.5 mm versionThe Titan X 3.5 mm version features a high-purity, silver-plated OCC copper cable.It has a 4-wire braided design and delivers crystal-clear sound with minimal interference and a clean background for pure hi-fi sound quality.The cable features 2-pin 0.78 mm plugs for easy replacement.Pixel-perfect sound reproductionThe Titan X is optimized for gamers; the pair produces immersive sound with an immersive 3D soundstage.Thanks to its clear, defined sound, gamers can hear every step and every sound with absolute accuracy.The Titan X's tuning also provides accurate directional cues and precise audio performance.Complete packageThe DUNU Titan X package includes the pair along with a carrying case, nine pairs of silicone ear tips, and a high-purity standard cable with 3.5 mm/Type-C connector.Enjoy seamless hi-fi sound with the DUNU Titan X right out of the box.Technical specificationsDriver: 10 mm DLC diaphragm dynamic driverImpedance: Sensitivity: 105 dBFrequency response: 5 Hz – 40 kHzTotal harmonic distortion (THD): <0.3%Connector: 0.78 mm 2-pinHousing material: High-density alloy with chrome-plated finishCable: 4-wire, high-purity silver-plated single-crystal OFCWeight: 13 g per sideConnection: 3.5 mm (standard) or Type C (with DSP)Scope of deliveryTitan XCarrying caseCleaning brush9 pairs of ear tips
High-Power Amplifier Supporting Streaming & Local
Playback
Stream via Roon Ready, AirPlay, or QPlay
Play straight from NAS, USB drives, or portable hard drives
7 inputs and 3 outputs
TI TPA3255 amplifier chip
Classic PFFB feedback circuit
120W + 120W @ 4Ω output power
Dedicated ES9020Q DAC
XMOS XU316 audio processor
10-band PEQ
Independent bass and treble adjustment
Included infrared remote control
Big Room-Filling Sound in the Palm of Your HandIs your living room, bookshelf, or desk cluttered with
decoders, amplifiers, and streamers, with cables in a tangled mess you don't
know where to start with? Do you want to bring your home's classic passive
speakers into the streaming era, but find the process too troublesome? AIR AMP
brings streaming control, HD decoding, and high-power amplification together in
one device. Palm-sized, yet powerful enough to build an entire clean,
clutter-free smart HiFi system.Compact Design, Powerful PerformancePowered by the TI TPA3255, a proven Class D amplifier chip
that pairs ultra-low distortion with high conversion efficiency. With the
included 48V/5A adapter, it delivers a punchy 120W + 120W @ 4Ω, enough muscle
to drive most bookshelf speakers and small-to-medium floorstanding speakers,
all without eating up your space. With a 48V/10A power adapter, output power
can reach up to 235W + 235W at 4Ω.PFFB Post-Filter Feedback Technology – A Backdrop of Pure
SilenceThis technology significantly reduces distortion, delivering
a pitch-black, pure background while ensuring consistent sound quality across
speakers of varying impedance, for a truly immersive listening experience.Supports Major Streaming ProtocolsYour favorite music is always just a touch away. Roon Ready
seamlessly integrates with the Roon music management system, bringing your
online and local music libraries together in one place. AirPlay lets you easily
cast from iPhone, iPad, Mac, and other devices with a single tap, giving you
effortless control over playback. QPlay lets you enjoy one-tap lossless
streaming from QQ Music with instant playback and effortless access to
high-quality streaming audio.NAS, USB Drive, and Portable Hard Drive PlaybackGive your treasured music library a new stage to shine on.
Play directly from USB drives and portable hard drives, or connect to your home
NAS over the local network. Select and play tracks easily through the FiiO
Control app, so your treasured master recordings and classic albums are always
ready to listen to.7 Inputs, 3 Outputs
With 7 input options, 3 output options, and two levels of
input sensitivity adjustment, AIR AMP offers exceptional compatibility with
diverse audio sources while effortlessly integrating with your speakers or
headphone system. Easily connect a turntable, TV, CD player, or stream to any
WiiM or Bluetooth device.
Inputs: USB, optical, coaxial, Bluetooth, local playback,
streaming, and RCAOutputs: speaker, subwoofer, and preampAdvanced Audio Decoding Chain – XMOS XU316 + ES9020Q DACThe complete signal chain, from digital decoding to power
output, is meticulously optimized to achieve low distortion and high dynamic
range, combining powerful driving capability with high-fidelity audio
performance. The XMOS XU316 16-core chip supports high-resolution audio up to
768kHz and DSD512, while the ESS ES9020Q DAC retains every musical detail with
pure, natural, and refined sound.Premium Imported Audiophile ComponentsFeaturing carefully selected imported high-end audio
capacitors and dedicated circuit optimization, AIR AMP delivers cleaner power,
reduced losses, and a purer sonic background with enhanced detail and dynamic
expression: 4 WIMA film capacitors, 2 Nichicon capacitors (2200μF), 4 Rubycon
film capacitors, and 4 ELNA coupling capacitors.Mobile App and Web-Based Dual PEQ AdjustmentSound tuning can be as simple or as detailed as you like.
Choose from built-in EQ presets with different sound styles to instantly match
your favorite music. Both the FiiO Control app and web interface support AUTO
EQ and 10-band high-precision PEQ, letting you easily apply a variety of tuning
curves or manually fine-tune settings to dial in your ideal sound.Wired or Wireless, Reliable and FastA dedicated gigabit Ethernet port keeps your wired
connection stable and interference-free, while dual-band 2.4GHz and 5GHz Wi-Fi
gives you the freedom to place your system wherever you want.App + Remote Control, Effortless Control Your WayThe FiiO Control app gives you access to complete settings,
from network setup and track selection to sound customization, all in one
place. The included infrared remote lets you switch inputs, adjust volume, and
change EQ presets without leaving your seat.

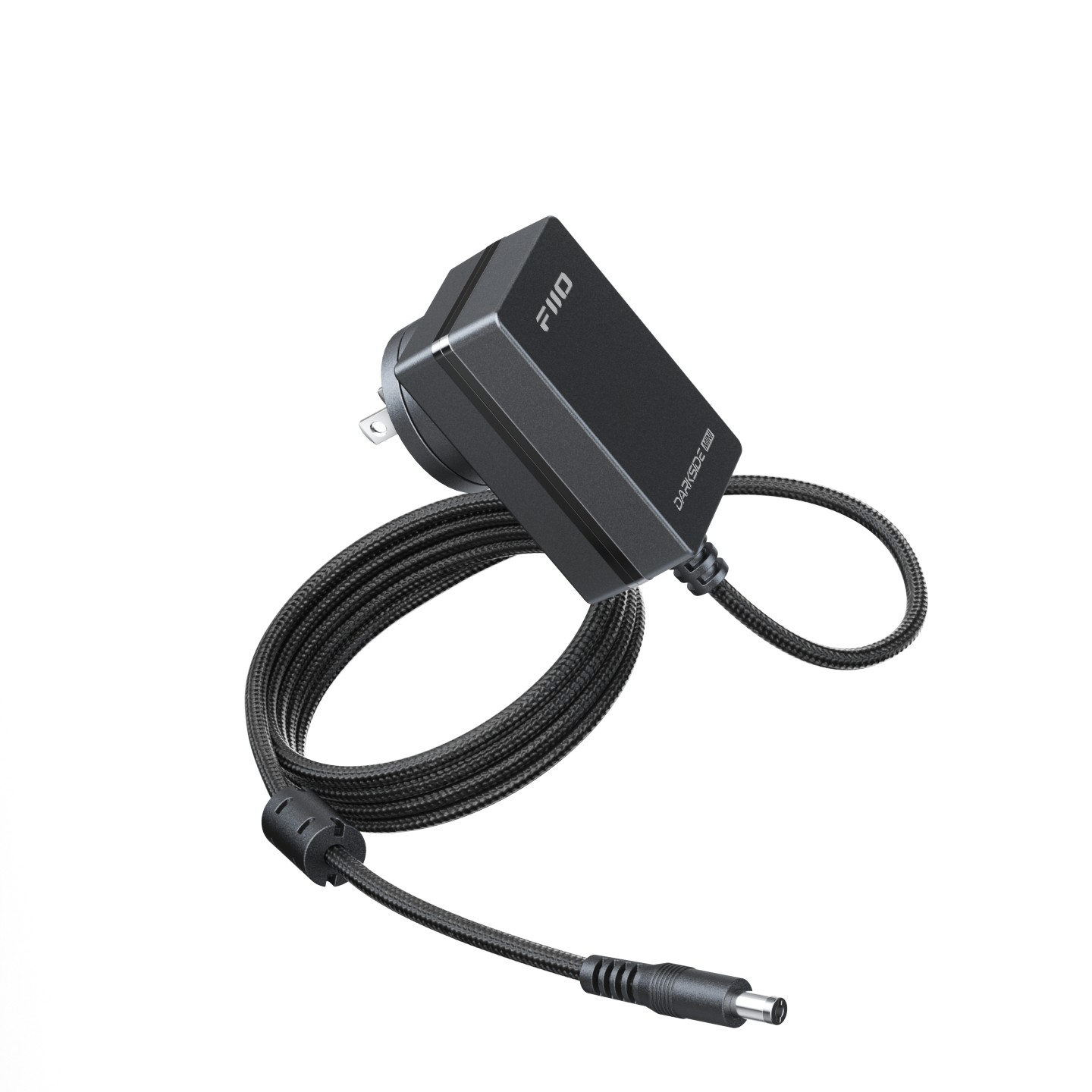

Noise Cancellation Power SupplyUp to 40dB noise reductionStable 5V / 2.5A power outputIntelligent active noise-suppression circuitryOptimised high-coupling transformer designFour connection options for wide device
compatibilityCompact design for desktop Hi-Fi and digital
audio equipment· · Clean, Stable Power for Your Audio Equipment The FiiO DARKSIDE MINI is a compact purified noise-reduction
power supply designed to provide clean and stable 5V power for compatible audio
and digital equipment.
Developed specifically with high-fidelity audio systems in
mind, the DARKSIDE MINI combines intelligent noise-suppression circuitry with
an optimised transformer to reduce electrical interference before it reaches
your equipment.
With noise reduction of up to 40dB and a stable 5V / 2.5A
output, it provides a simple way to improve the quality of the power supplied
to compatible DACs, streamers and other digital audio devices.
Intelligent Noise Reduction
Rather than relying solely on conventional filtering, the
DARKSIDE MINI uses an intelligent control chip to manage the output current
waveform.
The system actively works to reduce unwanted electrical
interference, helping deliver a cleaner power supply and minimise the potential
influence of power noise on sensitive audio circuitry.
FiiO rates the DARKSIDE MINI for noise reduction of up to
40dB.
Quiet and Efficient 5V Power
The DARKSIDE MINI provides a stable 5V / 2.5A DC output,
giving compatible high-fidelity equipment a consistent power source while
maintaining quiet operation.
Its compact format makes it particularly suitable for
desktop audio systems where a full-size specialist power supply may be
unnecessary or impractical.
Optimised Transformer Design
FiiO has optimised the internal transformer structure to
reduce fluctuations and interference within the power supply.
Combined with the intelligent noise-reduction circuitry,
this provides enhanced dynamic noise suppression and helps prevent unwanted
electrical noise from interfering with the audio signal.
The result is cleaner, more stable power for compatible
audio equipment.
Wide Compatibility
A standard 5.5 × 2.1mm output connection is complemented by
a selection of supplied adapters, allowing the DARKSIDE MINI to power a variety
of compatible devices.
Included adapters provide: USB Type-C, USB-A, 3.5 × 1.35mm
DC, 4.0 × 1.7mm DC
This makes the DARKSIDE MINI particularly useful for digital
audio equipment with different power-input connections.
Compact Desktop Design
Measuring approximately 71 × 44 × 42.5mm excluding the AC
plug and weighing approximately 133g, the DARKSIDE MINI delivers its specialist
power conditioning in a compact wall-adapter format.
Its small footprint makes it easy to integrate into a
desktop Hi-Fi system without adding another large component to your setup.
Specifications
Product Type: Purified Noise-Reduction Power Supply
Model: F8001D
Rated Input: AC 100–240V
Output: DC 5V / 2.5A
Noise Reduction: Up to 40dB
Main Output Interface: 5.5 × 2.1mm
USB Type-C: Supplied adapter
USB-A: Supplied adapter
DC Adapter 1: 3.5 × 1.35mm
DC Adapter 2: 4.0 × 1.7mm
Polarity: Centre Positive
Dimensions: Approx. 71 × 44 × 42.5mm
Weight: Approx. 133gDimensions and weight exclude the AC plug.
!Important!
Always check the required voltage, current, connector size
and polarity of your equipment before connecting the DARKSIDE MINI.
In the Box
FiiO
DARKSIDE MINI
5.5 ×
2.1mm to USB Type-C adapter
USB-A
adapter
3.5 ×
1.35mm DC adapter
4.0 ×
1.7mm DC adapter

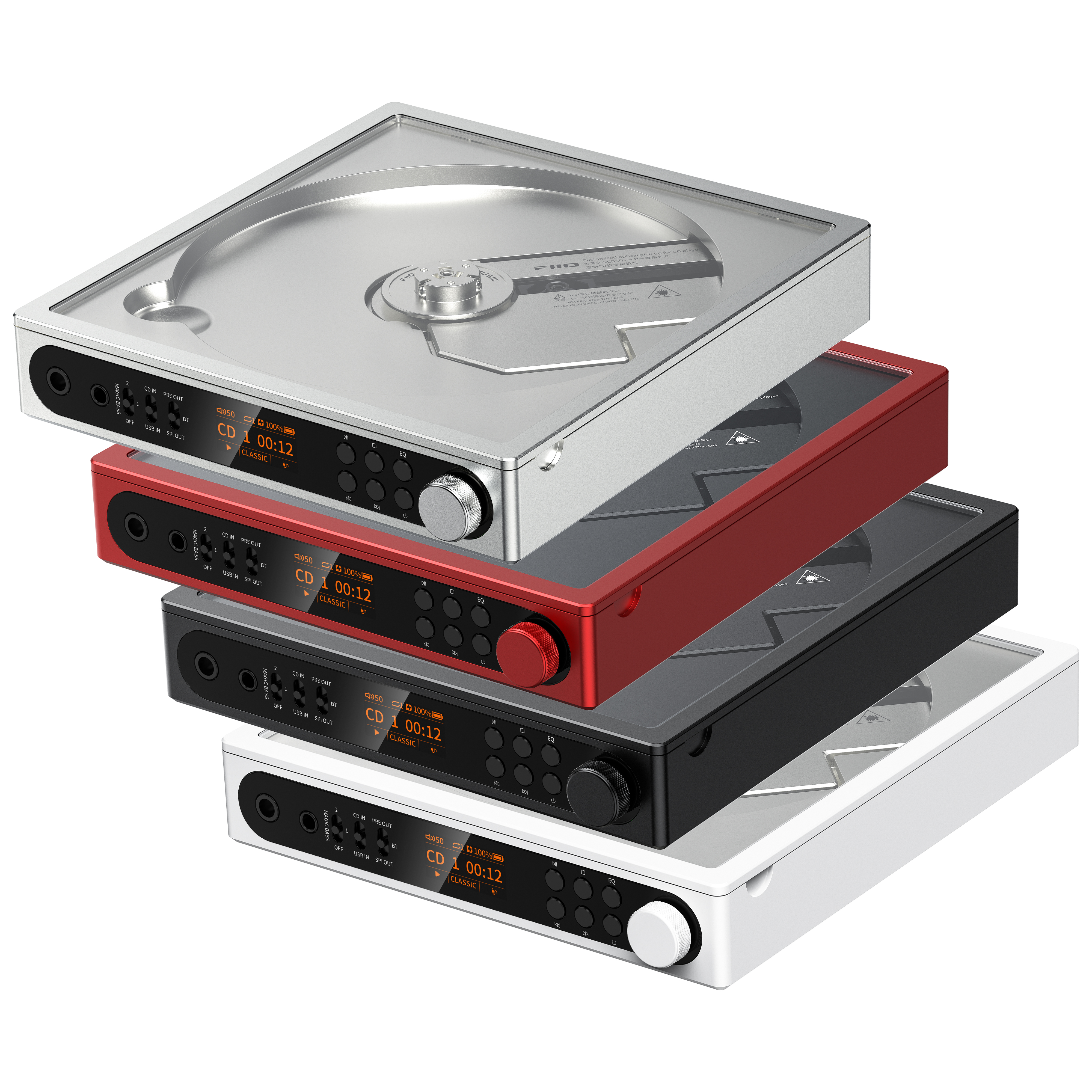

Portable CD player with built-in DAC and headphone amplifier
Five-core architecture
Dual AK4493S DAC chips
Powerful output of 1100 mW + 1100 mW
aptX Lossless Bluetooth transmitter
High-quality CD servo and custom-tailored mechanism
Stable CD playback with no noticeable lag or stutter
4.4mm balanced + 3.5mm single-ended headphone output
Powerful headphone output with 1,100 mW per channel
HiFi-grade USB DAC supports 32-bit/384kHz PCM and native DSD256 processing
Support for the lossless Hi-Res BT transmission protocol AptX
Ripping CDs to USB storage in WAV format
Dedicated 4.4mm and 3.5mm line outputs as well as coaxial and optical digital outputs
24 sound profiles with 3 bass levels and 8 EQ settings
ESP (Electronic Anti-Shock System)
4700mAh high-performance battery
Up to 6 hours of playback time as a CD player
Aluminum alloy chassis with transparent tempered-glass cover
High-resolution 0.96-inch LCD screen
Mechanical button/knob/dial control
Infrared remote control
Five core design elements
Comprehensively revised
The DM15 AKM represents a genuine leap forward, combining a more compact form factor with an even stronger feature set. Integrated into its portable chassis are five core building blocks: the CD drive, the USB DAC, the decoding module, and the Bluetooth module, all controlled and coordinated by a microcontroller (MCU). This thorough evolution of the "core" elevates the device in every respect and places it above the competition in its product category.
Dual AK4493S DACs
Classic return, unadulterated original sound
The DM15 AKM relies on two classic AKM DAC chips – the AK4493S. Based on VELVET SOUND™ technology, these chips deliver low distortion and a wide dynamic range, producing a warm, natural sound with a rich, lingering decay and a crystal-clear soundstage – a truly authentic and texture-rich sound.
aptX Lossless Bluetooth
A new level of experience
The DM15 AKM is equipped with Qualcomm's QCC3086 Bluetooth chip and supports aptX Lossless for true wireless lossless transmission, as well as aptX Adaptive, aptX, aptX HD, aptX Low Latency, and SBC. This delivers CD-quality lossless sound wirelessly, taking the Bluetooth experience in high-res quality to a new level.
*Bluetooth transmission mode does not support DSD files.
*Bluetooth protocols may differ between certain brands. Please make sure to set the required Bluetooth codec on the receiving device before connecting.
Custom CD drive
Reliable disc playback
The disc-reading quality of the DM13 has already been significantly optimized.
The DM15 builds further on this foundation, with additional customization of the CD drive. It features a self-rebounding steel ball design for disc alignment, making disc insertion and removal smoother and reducing the risk of scratches.
*Due to the structural limitations of a portable CD drive, FiiO cannot guarantee flawless reading of all CDs. FiiO will continue to optimize reading performance through future firmware updates.
*Minor skipping when reading certain high-capacity CDs is normal due to variations in mechanism, manufacturing materials, and recording conditions.
HiFi-grade USB DAC
Outstanding decoding performance
The long-awaited USB DAC function is now a reality.
While maintaining consistently excellent CD sound quality and compatibility, the DM15 AKM also integrates a HiFi-grade USB DAC. It supports high sampling rates of up to 384kHz/32-bit as well as DSD256.
Slim as an inch
Superior in its class A "powerhouse" among portable CD players
"Portable" CD players are increasingly growing in size, undermining their original purpose of being easy to carry and move around.
The DM15 has been further refined and slimmed down compared to the DM13. By uniquely integrating high performance and a wealth of features into an extremely compact, portable form, it stands out from its competitors.
Global BASS + EQ
24 sound profiles
With 3 BASS modes and 8 built-in EQ presets, up to 24 dynamic sound profiles can be combined. There is even a specially tuned RETRO sound profile that delivers a rich, analog, classic tonal character.
*Since selecting BASS or EQ affects the output level, please adjust the volume as needed.
The all-rounder
Fully capable
The device combines a portable CD player, a HiFi-grade USB DAC, a high-resolution USB/CD Bluetooth transmitter, and a USB/CD digital transport system in a single unit – offering significantly more versatility and compatibility than comparable portable CD players.
HD TFT display
Your music, effortlessly in control
The player's retro-inspired UI design blends modern and classic style elements into an appealing yet easy-to-use interface. It clearly and concisely displays information such as battery level, operating mode, EQ settings, sample rate, Bluetooth connection list, and more, allowing you to keep track of your audio experience at all times and enhance your musical enjoyment.
Mechanical vintage controls
The overture to a great listening experience
This newly designed retro layout combines mechanical buttons, knobs, and dials that feel tangible, making operation simple and intuitive. In addition, the genuine haptic feedback of every action lets you fully experience the beauty of CD listening through sight, touch, and sound.
Supports USB ripping function
Preserve the melodies that move you
The player lets you rip tracks while listening, so you can save your favorite CDs in WAV format to external storage*. Easily share these unforgettable songs with friends.
*Only FAT32-formatted external storage devices are supported.
*Only music ripping in CDDA format is supported. For system firmware updates or CD ripping, a Type-C USB flash drive of 32GB or less is recommended.
Patented desktop mode
The battery protection specialist
This mode bypasses the battery for stationary use, protecting it from strain even under high output power. It also significantly reduces the number of charge/discharge cycles, which substantially helps extend battery lifespan.
*Should the device power off due to a 0% battery level, charging will begin automatically, even if desktop mode is active, in order to protect battery health.
Patent number: ZL202321946664.8
Infrared remote control included
The included remote control makes it easy and convenient to operate the device from a distance.
High-voltage lithium battery
Freedom on the go
A specially selected 4700mAh, 3.85V pure cobalt high-voltage lithium battery delivers powerful performance to the DM15 AKM. Enjoy about 6 hours* of continuous music playback, easily meeting your need for extended listening enjoyment without having to worry about battery life.
*The figures are based on tests conducted by FiiO's labs and are for reference only. Actual results may vary depending on the environment and usage scenario.
ESP switch (Electronic Shock Protection)
By enabling the ESP function, users can enjoy a stable and engaging sound experience whether the player is used on the go or stationary on a desk.
*Enabling the ESP function improves playback stability, but switching it on or off does not have a significant effect on disc-reading performance.
Custom buttons and functions
Tailored to your habits
The DM15 AKM supports personalized customization, unlocking flexible control options and exclusive output modes that perfectly adapt to your operating habits and audio equipment requirements.
Custom knob button function
Easily set the function of the knob button in the menu, for example configuring the knob as a play/pause shortcut, making everyday music control more convenient and intuitive.
PRE-OUT output selection
Supports switching the output mode. In the menu, you can set PRE OUT to LO output only*. When enabled, the device delivers a fixed, maximum-volume output – specially tailored for desktop HiFi systems such as external power amplifiers and speakers.
*When the LO-only output mode is enabled, the device's headphone output is disabled. The volume at the LO output will then be at its maximum level. Please therefore make sure that the volume of your connected devices is set to an appropriate level before connecting external devices or enabling this function, in order to avoid excessive volume damage to ears or equipment.
Transparent window
Looks and function in one
A rich color palette: white, silver, black, and red. A true style icon that stands out anywhere.
The device features a minimalist yet stylish design with a chassis made of fully anodized aluminum, giving it a premium look and feel. Both the transparent lid and the front cover are made of tempered glass for increased scratch resistance and durability.
Bluetooth on-ear headphonesRetro ear cups with woodBluetooth 6.0High-resolution 40 mm dynamic driverSemi-open designLDAC supportUp to 30 hours of battery lifeLightweight and portable 92 g designSupports app controlReplaceable ear padsExpression of retro-futurism aestheticsThe exterior pays homage to the classic design of the mini on-ear headphones of the 1980sThe sleek design offers a transparent view of the inner workings and complements the small wooden ear cups with real buttons, creating a unique aesthetic where nostalgia and futurism meet. The perfect vintage accent for your look.High-resolution 40 mm dynamic driverThe audio quality is in no way inferior to the styleFiiO has solved the problem of frequency loss in the low frequency range, typical of classic on-ear models, by incorporating a bass-optimized driver in the EH11. The audio quality of these on-ear headphones is anything but “retro” and offers much more than just adequate sound. Fiio has chosen a 40 mm long-stroke driver with a highly damped composite diaphragm to lower the resonance frequency to 65 Hz. This gives the EH11 powerful, dynamic bass that extends down to 17 Hz and covers the entire spectrum of low-frequency instruments. You'll experience sharper attack and decay on drums, as well as excellent instrument separation and multi-layered depth when enjoying complex classical pieces.Semi-open designVentilated comfort and minimized sound radiationThe semi-open design of the headphones, with ventilation holes and damping filters, eliminates the “stuffy” feeling typically associated with closed headphones. The result is a more natural and transparent sound. Compared to fully open headphones, the damping system controls airflow to minimize sound radiation.LDAC support for high-resolution BluetoothNear-lossless audio qualityThe EH11 supports the high-resolution Bluetooth encoding format LDAC*. With a transfer rate of up to 990 kbps, which is about three times that of standard Bluetooth formats (SBC/AAC), LDAC transmits significantly more raw audio data during transmission, resulting in near-lossless sound quality. As one of the few Bluetooth codecs for wireless transmission to receive Hi-Res Wireless certification, it is widely recognized in the industry as a high-quality, high-resolution Bluetooth standard.*To use this feature, your source device (phone) must support LDAC output. Due to the larger amount of data transmitted, using LDAC results in slightly higher power consumption. The format is enabled by default but can be disabled via the FiiO Control app.Long battery life of up to 30 hoursUninterrupted music playbackCharge the device for just 2 hours and enjoy up to 30 hours of playback time. Say goodbye to worrying about short battery life and enjoy music wherever you go.Portable and lightweight designTake the EH11 with you anywhere without any hassleWeighing only about 92 g and with a gentle clamping force of only about 1.7 N, these headphones are so light that you can hardly feel them on your head, allowing for fatigue-free long listening. Enjoy the feeling of music floating around your ears with cloud-like comfort.No interruptionsSupports simultaneous connection of two devicesThese headphones can stay connected to two Bluetooth devices at the same time, such as your PC and smartphone, so you can switch seamlessly between watching series and playing games. This means you don't have to constantly re-pair devices and can enjoy uninterrupted, immersive listening pleasure.Custom audio profilesYou control the soundDownload the dedicated FiiO Control app to start your enhanced audio experience. The app features a 10-band EQ and a variety of built-in sound profiles, including pop, jazz, classical, and rock, allowing you to perfectly tailor the sound to whatever genre of music you're listening to, so every note sounds tailor-made for your ears.Specially tuned gaming sound effectsUltra-low latency for instant precisionSpecially tuned sound effects for gaming scenarios enhance the experience of footsteps and gunshots. Combined with a semi-open on-ear design, it offers a wider and more natural soundstage with excellent separation, resolution, and richer detail compared to closed-back headphones, enabling pinpoint sound positioning. It also features a built-in high-definition microphone that accurately captures voices while reducing ambient noise, ensuring efficient team communication.*Gaming sound effects must be enabled and switched on in the FiiO Control app.Replaceable ear padsEasy to clean and replaceThe foam ear pads are easy to remove and replace, making them easy to clean. Two sets of ear pads in different colors are included in the package. The replacement pair of ear pads is a handy addition to the package, as the original ear pads will need to be replaced at some point.Technical specificationsModel: EH11Headphone type: On-ear Bluetooth headphonesDriver: 40 mm dynamicBluetooth version: 6.0Bluetooth codecs: SBC/LDACBattery life: approx. 30 hoursCharging time: approx. 2 hoursColors: Black transparent, Transparent, Cream, Burgundy, CyanFrequency response: 17 Hz–40 kHzImpedance: 16 ohmsWeight: approx. 92 g
Bluetooth over-ear headphones with noise cancellation40 mm dynamic driverSapphire-coated composite diaphragm-42 dB hybrid active noise cancellationENC (Environmental Noise Cancellation) for callsLDAC supportSupports wired mode75 hours of battery lifeFoldable designSupports app control, fully customizable EQNext-generation noise cancellation and sound qualityDual Hi-Res Audio certificationSupport for wired modeConnect to two devices, seamlessly switch between multiple devices40 mm dynamic driversPure sound clarityEquipped with large 40 mm dynamic drivers, these headphones deliver exceptionally clear sound. From the expansive arrangements of an orchestra to the subtle nuances of a vocal performance, every detail is reproduced faithfully for an authentic sound.Sapphire-coated composite diaphragmSilence in every detailThe EH13 features a special driver diaphragm design that combines a sapphire-coated dome with a PEEK+PU composite surround.The dome is coated with sapphire—a material whose hardness is surpassed only by diamond. Its high modulus of elasticity of 400 GPa significantly increases the stiffness of the diaphragm and effectively suppresses distortion during rapid vibrations. This reduces distortion by 30% and ensures fine, detailed highs. Precision embossing further improves transient response and minimizes distortion, while the diaphragm withstands the negative pressure during noise cancellation, extending its lifespan.The PEEK+PU composite surround provides robust support for the rest of the driver diaphragm. It improves bass response and quantity, thereby also optimizing the noise cancellation effect* for a deeper sense of silence.*The principle of noise cancellation is that the driver emits sound waves in opposite phase to the ambient noise in order to cancel it out. The sound pressure level (SPL) of the driver in the low frequency range is crucial for the effectiveness of ANC.Intelligent noise cancellationDeep -42 dB immersionThe EH13 uses a hybrid dual microphone system (feedforward + feedback) powered by a powerful chip and precise algorithms. This allows the driver to precisely filter out ambient noise while preserving every detail of your music, achieving maximum noise reduction of -42 dB*. It effectively neutralizes low-frequency noise from airplanes and trains.Choose from three adjustable noise cancellation levels to suit your environment—from the roar of a jet engine to quiet concentration in an office. Switch modes with a single touch to immerse yourself in your personal oasis.High: Traffic noise Eliminate with a tapMedium: Daily concentration Work and studyLow: Environmental awareness Move freely*The above data is from tests conducted by FIIO Labs.Precise DSP compensationStable, superior soundThe EH13 uses an optimized microphone array and powerful DSP algorithm to fill in the gaps that standard headphones overlook. By dynamically compensating for the audio signal in real time, it ensures stable and rich sound. Whether noise cancellation is on or off, you get the same premium, crystal-clear audio quality every time.Intelligent ENC call technologyClarity that feels closeWith 5 built-in microphones and advanced ENC smart algorithms, the EH13 intelligently picks up your voice during a call while blocking out city noise and wind noise. No matter where you are, every call feels like a personal conversation.LDAC supportDual Hi-Res Audio certifiedThe EH13 supports the high-resolution LDAC Bluetooth codec*. With transfer rates of up to 990 kbps—about three times that of standard SBC/AAC codecs—LDAC provides a wider frequency response and a wealth of musical detail.The EH13 has both Hi-Res Audio and Hi-Res Audio Wireless certification, meaning its sound quality is recognized by leading global audio associations.*Requires a compatible source device (smartphone/player) that supports LDAC transmission.LDAC transmits more information, which may result in slightly higher power consumption. LDAC is enabled by default but can be disabled in the FIIO Control app to extend battery life.Seamless switching between wired and wireless modesConsistently high sound qualityThe EH13 supports a 3.5 mm cable connection, allowing you to explore a wider world of high-resolution audio. The EH13 uses intelligent DSP compensation to bridge the gap between wired and wireless modes, guaranteeing you the same premium sound every time you listen.*For the DSP to be active in wired passive mode, the EH13 must be turned on while using the 3.5 mm cable.Extended battery lifeMusic always with youEquipped with a high-performance battery, the EH13 only needs 2 hours of charging time for up to 75 hours of continuous playback, so you always have your favorite songs with you.*Data reference: With ANC mode enabled, battery life is up to 45 hours; with ANC mode disabled, battery life can reach up to 75 hours. Actual usage time may vary depending on the front-end model and specific usage conditions (data from FIIO Labs).Foldable designSpace-saving portabilityThe EH13 can be rotated and folded into a compact, portable shape, distributing pressure evenly to prevent deformation during transport. With maximum space efficiency, it can be easily stored in carrying cases or backpacks, making it the perfect companion for both listening at home and outdoor adventures.Connection for two devicesSeamless and smooth switchingThe EH13 supports simultaneous connection to two Bluetooth devices, such as your smartphone and laptop. Perform multiple tasks smoothly and switch effortlessly between streaming movies, games, and calls without having to worry about repeated pairing.Personalized soundFor every momentUnlock advanced features with the FIIO Control app. Choose from professionally tuned EQ presets—including pop, rock, and classical—or create your own frequency curves to create a personal concert hall tailored to your ears.Gaming mode—strike first:FiiO's specially tuned gaming profile isolates ambient noise and amplifies footsteps and gunshots with surgical precision. By capturing even the smallest audio details, it gives you a decisive advantage over the competition. The HD noise-canceling microphone ensures that your voice is clearly heard even in the midst of the hustle and bustle, making team coordination easier.Cinema Mode - A feast for the senses:Enhanced dynamic response and powerful bass create a cinema atmosphere in your living room. Superior voice clarity makes every dialogue intimate and crisp. Experience breathtaking sound that puts you right in the middle of the action.*Search for the latest version of “FIIO Control” in the major app stores. Simply add your device to use it.Versatile colorsDefine your personal styleChoose between black and beige to create a look that suits your style: a warm, elegant fashion accessory or a striking, sleek high-performance device. Two different colors, two unique ways to express yourself.SpecificationsHeadphone type: Bluetooth over-ear headphones with noise cancellationFrequency response: 20 Hz–40 kHzDriver: 40 mm dynamicDiaphragm material: Sapphire-coated composite diaphragmImpedance: 16 ΩBluetooth version: 6.0Bluetooth codecs: SBC/LDACBattery life: approx. 75 hoursCharging time: approx. 2 hoursWeight: approx. 278 gEar cup pressure: 4.2 N ± 0.3 NColor: Black/BeigeScope of delivery1. Headphones*12. 3.5 mm audio cable*13. USB-A to Type-C charging cable*14. Quick start guide*1
Gaming HeadsetCoaxial design with two dynamic driversBuilt-in dual-core DSP processorBuilt-in DAC with support for audio up to 24-bit/192 kHzDedicated headphone amplifier with an output power of up to 80 mWVirtual 7.1 surround soundDetachable ENC microphoneHardware sidetone monitoringBrowser-based customization via FIIO Control WEBCustomizable 10-band EQSound presets for gaming, movies, and musicDriver-free plug-and-play operationSupports Windows, smartphones, laptops, PS4, PS5, Xbox, and Nintendo SwitchFoldable designReplaceable ear padsClosed-back acoustic designHi-Res Audio certifiedVirtual 7.1 Gaming HeadsetThe FiiO FG3 is an over-ear gaming headset that brings the company’s Hi-Fi acoustic expertise to the competitive gaming arena. A coaxial design with two dynamic drivers, a built-in high-performance DSP, and a dedicated headphone amplifier work together to deliver precise positional audio, detailed sound reproduction, and low latency. With a detachable ENC microphone, virtual 7.1 surround sound, browser-based audio customization, and broad platform compatibility, the FG3 is designed for gaming, entertainment, and everyday listening pleasure.Coaxial Dual-Driver DesignThe FG3 features a coaxial configuration with two dynamic drivers, combining a 50-mm driver with a 16-mm driver into a single sound source. This design ensures excellent phase consistency and directional accuracy, thereby enhancing spatial imaging for competitive gaming. An electronic two-way crossover assigns the low and mid frequencies to the larger driver, while the smaller driver reproduces the high frequencies. This expands the frequency response and brings out subtle details without compromising sound power.Drivers Specifically Designed for Competitive GamingThe 50-mm driver with a composite diaphragm delivers powerful midrange and bass reproduction while enhancing vocal clarity, making it easier to distinguish communication with teammates and positional cues. The 16-mm dynamic driver with a titanium coating enhances detail in the high-frequency range and helps reproduce footsteps, ambient sounds, and subtle directional cues with greater precision.High-Performance Dual-Core DSPAn integrated dual-core DSP processes demanding gaming audio signals with low latency and fast response times. A built-in DAC supports audio up to 24-bit/192 kHz, while a dedicated headphone amplifier delivers an output power of up to 80 mW. Together, they ensure clear, detailed playback—from quiet ambient sounds to spectacular cinematic effects.Virtual 7.1 Surround SoundA specially developed algorithm for virtual 7.1 surround sound expands conventional stereo sound into a three-dimensional soundstage that enhances spatial awareness and immersion in the game. Explosions, overhead movements, and positional effects are reproduced with enhanced spatial depth. Virtual 7.1 processing is available in Cinema Mode and Action Mode (ACT).Detachable ENC MicrophoneThe detachable microphone uses an intelligent Environmental Noise Cancellation (ENC) algorithm to reduce distracting background noise—such as keyboard and mouse sounds—while focusing on your voice, ensuring clearer communication. It also supports hardware-based sidetone monitoring, which enables real-time voice monitoring with adjustable levels via FIIO Control WEB, ensuring more natural communication while gaming.Browser-Based Audio CustomizationThe FG3 supports FIIO Control WEB, allowing for audio customization directly through a web browser without the need to download any software or drivers. Users can create and save custom 10-band EQ profiles, switch between presets for gaming and entertainment, and adjust microphone monitoring settings for various listening situations.Special Gaming and Entertainment ModesPreset sound profiles are optimized for FPS, MOBA, Action (ACT), Rhythm (MUG), Cinema, and music playback. Each profile is tailored to its specific use case, allowing you to easily change the sound characteristics with a single click. The presets for FPS, MOBA, and MUG do not enable virtual 7.1 surround sound processing.Cross-Platform CompatibilityThe driver-free USB connection enables true plug-and-play operation on a wide range of devices. The headset supports Windows 7, 8, 10, and 11, as well as compatible smartphones and laptops, and automatically switches between UAC 1.0 and UAC 2.0 modes to ensure compatibility with PlayStation 4, PlayStation 5, Xbox, and Nintendo Switch systems.Portable, Foldable DesignThanks to its foldable frame, the headset is easier to transport between home, school, work, tournaments, or while traveling. Its compact size when folded allows for convenient storage while ensuring the durability expected for daily gaming use.Comfort for Long Gaming SessionsThe closed-back ear cups reduce external noise and minimize sound leakage. Breathable, woven mesh keeps your ears cool during extended gaming sessions, while soft memory foam ear cushions comfortably adapt to different head shapes. A Hi-Fi-grade stainless steel headband ensures long-term durability, and the replaceable ear cushions simplify maintenance over time.Integrated Inline ControlsAn inline controller provides convenient access to key functions during gameplay. Users can switch between “Gaming,” “Movie,” and “Music” modes, mute or unmute the microphone, adjust the playback volume, and instantly mute the audio without interrupting the game.
Closed-back headphones Natural purpleheart wood Large dynamic 60 mm driver Diaphragm made of wool composite nanofiber wood W-shaped diaphragm Closed design U-shaped damping tube Low impedance, high sensitivity, easy to drive Furukawa monocrystal copper + silver-plated, oxygen-free copper braided cable Lambskin/suede ear padssuede included 4 detachable audio plugs included Yaoli linen storage bag Naturally magical colors, gracefully enchanting purple The creation of the FT13's wooden ear cups Following the success of our FT1 wooden headphones, FiiO began searching for new types of wood to bring their unique appeal to more people. This time, FiiOs search led them to a “purple treasure” from the ancient rainforests of South America: purpleheart wood. This wood is not only exceptionally hard, but also captivates with its unique color. Over time, its light brown hue gradually transforms into an unforgettable, deep purple. Creating the vibrant wooden ear cups requires a blend of nature's magic and FiiO's meticulous craftsmanship. Purpleheart has been used for instruments, furniture, and other items since the 1920s. After a long journey from South America, the wood arrives in Lianyungang, Jiangsu, where it is stabilized in a hot oven and cut with precision. It is then stored for months in a dark room, where it slowly “develops” its fascinating wine-red color. This wood then undergoes a final, intensive process of selection, cutting, CNC carving, polishing, and varnishing before it is ready for the final product. Due to its rarity in nature, purple has long been considered a symbol of mystery, power, and individuality—with deep cultural significance. It is precisely this color, which ages beautifully over time, that is our inspiration. It allows us to perfectly express the original intention of our wooden headphone series—to blend into the natural world and age elegantly over time. Ear cups made from natural purpleheart wood Natural colors, solid and hard The headphone ear cups are made from purpleheart wood, a type of wood native to South America. To achieve its rich color, each piece of wood is left to age naturally for 90 days. Due to their individual characteristics, each wooden ear cup has a unique grain and color tone, making each pair of headphones truly one of a kind. The raw wood is first cut to size with precision using CNC milling. To achieve a perfect finish, FiiO then apply a high-gloss lacquering process in which the wood is repeatedly sanded, polished, and the natural pores and unevenness are filled until the surface is completely smooth. Finally, a final coat of high-gloss lacquer is applied, bringing out the unique, natural grain of the wood. With a density and hardness far exceeding that of ordinary woods, purpleheart wood is not only naturally corrosion-resistant, but also helps to minimize resonance in the headphone ear cups. The result is a faster and clearer sound. *This wood comes from the tropical rainforests of South America and is known for its stunning purple-brown color and superior strength. It is often used for high-quality furniture, musical instruments, and decorative items. Its unique color is not artificially applied, but is the result of natural oxidation. With prolonged exposure to light and air, the color of the wood gradually darkens, eventually taking on a deeper purple-brown or chestnut hue. Large 60 mm dynamic driver Enjoy deep bass and a wide soundstage Like the FT1, the FT13 features a massive 60 mm dynamic driver, a size that is almost unheard of in its category. This larger driver produces more power and converts electrical signals into sound more efficiently. The result is sound with less distortion, faster transients, and deeper, more powerful bass. Wool composite nanofiber wood cone European wood, honed from over 100 years of paper manufacturing expertise The new cone is made from birch wood sourced from the cold climates of Europe. The extreme cold makes the wood incredibly hard and gives it strong fibers. This unique property allows us to precisely tune the resistance and stiffness of the diaphragm during manufacturing to achieve our desired sound goals. Using the same traditional paper-making process as for the FT1 cone, a method that has been around for over 100 years and is still widely used by various hi-fi brands, the raw materials are processed into pulp through soaking, steaming, and beating. During this process, lighter and harder carbon fiber threads are added to increase the stiffness of the diaphragm and reduce unwanted breakage, improving detail in the high frequency range. The diaphragm is then baked and molded to a thickness of only 0.1 mm. By adding wool fibers to the paper diaphragm, FiiO take advantage of their natural flexibility to fine-tune the sound. This gives the finished diaphragm a uniquely natural and warm sound character that is both captivating and profoundly emotional. W-shaped diaphragm Proprietary acoustic technology for higher efficiency The headphones feature a W-shaped diaphragm design inspired by speaker diaphragms. Compared to the driver diaphragms typically used in headphones, this design increases the effective vibration area of the diaphragm by 25.8%. The diaphragm consists of a hard dome and a flexible surround. This rigid dome covers a larger surface area than conventional diaphragms, and since it is driven directly by the voice coil, less energy is lost during vibration transmission. Compared to a more flexible material, the hard dome has lower internal losses, resulting in higher efficiency and lower distortion due to driver breakup. Closed design Greater immersion through reduced noise, enjoy pure, quiet sound Beyond the natural isolation of its closed wooden ear cups, the FT13 features an integrated system of passive noise reduction components. These include a standing wave dissipation chamber, specially designed sound-absorbing cotton in the rear cavity, and a noise-reducing U-shaped tube. Together, these components can reduce everyday ambient noise by up to 26 dB. The closed design also prevents sound from escaping, making the headphones perfect for quiet environments such as offices, libraries, or dorm rooms without disturbing others. U-shaped damping tube An invisible hand that reduces resonance Inside the FT13, a U-shaped damping tube cleverly uses the air inside the headphones to tune the sound. The design of this tube has been carefully optimized to lower the resonance frequency of the cavity, resulting in deeper, higher-quality bass. Low impedance, high sensitivity, easy to drive Your entry-level headphones The impedance, sensitivity, and frequency response of the FT13 make it the ideal choice for listeners taking their first steps into the world of personal audio equipment. It pairs perfectly with popular, non-audiophile devices such as smartphones, tablets, and PCs. Experience high-fidelity sound in audiophile quality without having to invest in expensive or complex equipment. Large CCAW voice coil Lightweight, wide, powerful The FT13 features a CCAW voice coil imported from Japan with an ultra-thin 0.035 mm wire and a lightweight KSV body. These components significantly reduce the moving mass of the diaphragm, resulting in faster sound reproduction and less unnecessary reverberation. The voice coil has a diameter of 25 mm. In a fixed magnetic field and at constant current, a larger coil diameter means a longer voice coil wire. A longer copper wire thus results in greater driving force and higher efficiency, leading to a richer midrange and faster transients. Adjustable magnesium alloy headband Advanced materials, improved comfort The FT13 offers a significant improvement in headband comfort through comprehensive improvements in materials, aesthetics, and ergonomics. The outer U-shaped frame is now made of a strong and lightweight magnesium alloy that blends seamlessly into the design of the headphones. The ball-bearing slider features a high-quality design found in high-end headphones, offering a silky-smooth adjustment with clear feedback, while the swivel joints and connections are more robust than ever. The part of the headband that comes into contact with your head has been replaced with soft, durable lambskin leather, which is both more durable and breathable than the synthetic leather commonly used, providing greater comfort during longer listening sessions. Three-axis swivel mechanism Swivels as desired, freely adjustable After extensive ergonomic testing, FiiO implemented a three-axis adaptive swivel mechanism that continues the FT series' tradition of excellent ergonomics. This design not only ensures that the headphones comfortably adapt to different head sizes and shapes, but also allows for a perfect fit without sound leakage. Angled driver design Reduces standing waves for clearer sound In the FT13, the acoustic drivers are angled to run parallel to your ear canals, so the sound reaches your eardrums directly. This not only reduces the high-frequency drop you would get with a conventional design, but also minimizes standing waves inside the ear cups. The result is a much clearer, purer sound with less distortion. Furukawa monocrystalline copper + silver-plated oxygen-free copper Improved cable, improved sound This cable is constructed with an 8-strand braided design and contains a total of 1,000 conductor wires. It is a blend of 500 secondary-melted Furukawa single-crystal copper wire conductors and 500 oxygen-free silver-plated copper wire conductors, each with a polarity of 17 AWG. This combination of high-quality metals and advanced processing techniques enables the cable to deliver truly outstanding sound quality. Furukawa single-crystal copper Increases the richness and density of the midrange and improves bass quality, making the mid and low frequencies sound full and emotional. Silver-plated oxygen-free copper, the silver plating helps to improve the conductivity and high-frequency transmission characteristics of the copper, enhancing sound transparency with more detail and optimized overtones, as well as an expanded soundstage. Lambskin/suede ear pads Velvety texture, reliably durable Two types of ear pads are included, both of which feature a skin-friendly, breathable, and durable outer material. Inside the ear pads is a low-density, slow-rebound memory foam that conforms to the shape of the ear. Compared to the synthetic leather ear pads commonly used in headphones, these offer both greater comfort and a longer service life. The high-quality ear pads made of natural lambskin have a velvety smooth surface that is also breathable, sweat-resistant, and easy to clean. In terms of sound, these ear pads deliver detailed highs, clear and clean mids, and fast bass. The suede ear pads have a matte texture, are durable and flexible, yet cool and breathable. In terms of sound, these ear pads enhance the bass, add richness to vocals, and enhance the sense of atmosphere. Four detachable plugs included Wide compatibility The FT13 comes with four detachable audio plugs, allowing one cable to be used with different audio sources. Hi-Res Audio certified Reliably excellent sound The certification is not only proof that the headphones meet international standards, but also of our continuous pursuit of better sound quality. Yaoli linen storage bag Stylish and dust-proof, so you don't have to worry The headphones come with a high-quality Yaoli linen storage bag, which further enhances the ownership experience. With materials and workmanship that rival those of premium French brands, its exquisite quality and excellent texture provide special protection for your valuable device. 3 significant improvements Improved sound: Compared to the spruce wood diaphragm of the FT1, the FT13 features a birch wood diaphragm that is many times harder to improve the precision of the diaphragm. In addition, carbon fiber has been added to increase the stiffness of the diaphragm and reduce unwanted driver interruptions, resulting in higher treble resolution compared to the FT1. Improved cable: Compared to the FT1's silver-plated oxygen-free copper cable, the FT13's secondary-refined Furukawa monocrystal copper and high-purity oxygen-free silver-plated copper cables are an improvement in every respect. The materials used, the number of wires, and even the wire diameter have been improved, resulting in a comprehensive improvement across the entire frequency range (lows, mids, and highs).Improved comfort: Compared to the FT1, the FT13 offers comprehensive ergonomic improvements. Both the headband and ear pads have been replaced with more breathable materials that are also wear-resistant and less prone to flaking. The headband is made of a lighter magnesium-aluminum alloy, and the feel and design of the ball-bearing slider have been improved. Specifications Headphone type: Closed dynamic headphones Frequency response: 7 Hz–40 kHz Driver: 60 mm dynamic Impedance: 32 Ω Sensitivity: 98 dB/mW at 1 kHz, 113 dB/Vrms at 1 kHz Weight: approx. 356 g (without cable) Ear cup pressure: 4.2 N ± 0.3 N Cable material: Secondary refined monocrystalline copper from Furukawa + silver-plated oxygen-free copper Cable length: approx. 1.5 m Cable headphone connector: dual 3.5 mm (TS) Audio plug: 3.5 mm/4.4 mm Ear cup material: Purpleheart wood Ear cup colors: Natural wood/black What`s in the boxHeadphones*1 Storage case*1 Storage pouch*1 Cleaning cloth*1 FT13 packaging box*1 Headphone cable*1 3.5 mm single-ended plug, detachable*1 4.4 mm balanced plug, detachable*1 (pre-installed on headphones) 3.5 mm to 6.35 mm adapter*1 4.4 mm jack to XLR-4 plug adapter*1 Lambskin ear pads*1 (pre-installed on headphones) Suede ear pads*1 Quick start guide*1
Velour ear pads for the FiiO FT13Soft and skin-friendly velour ear pads for comfortable wear Custom-made 3D fiber ear pads made from Ultrasuede fabric, which is softer than genuine leatherBreathable and durable Retains its shape, even after washing Good insulation so that every sonic detail can be heard
– Perfect fit for the FiiO FT13 headphones Easy installation The FiiO HS-FT13A ear pads for the FT13 headphones are made of velourVelour is a material known for its soft, velvety texture and durability. They are breathable and feel very comfortable on the skin, making them suitable for long periods of use, such as listening to music, watching TV, or gaming for hours on end. The ear pads have been specially designed for the FiiO FT13 headphones to ensure a perfect fit. They can be installed without tools and fit perfectly on the ear cups of the FT13 headphones. This ensures an optimal seal and thus a detailed sound with high wearing comfort.
Velour is a very durable material that is easy to clean. Unlike other materials that can wear out or deform over time, these ear pads retain their shape and quality over a long period of time.
Ear pads for FT1/FT1ProGenuine leatherMemory foamMarking for L/RAngledFT1 headphone replacement ear padsSelected high-quality sheepskin leather, soft and supple, clear texture.Pure natural sheepskin is breathable, comfortable, and durable, specially designed for FT1 so you can enjoy the soft and delicate sheepskin.Slow-rebound memory foamThe ear pads are made of low-hardness, slow-rebound memory foam that automatically adapts to the shape of your face, evenly distributes and reduces contact pressure, and ensures that the seal is not compromised.Note: These ear pads also fit the FiiO Jade Audio JT7
Replacement ear pads for the FiiO FT1 and FT1 Pro Soft and skin-friendly velvet ear pads for comfortable wear Good insulation so that every sound detail can be heard Perfect fit for the FiiO FT1 and FT1 Pro headphones Easy installation FiiO HS-FT1B – Velvet ear pads for FT1 and FT1 Pro headphones The HS-FT1B ear pads are made of fine velvet fabric, which is known for its particularly soft texture. The velvet ear pads provide excellent sealing, making low frequencies more pronounced and vocals more emotionally audible. The ear pads have been specially designed for the FiiO FT1 and FT1 Pro headphones to ensure a perfect fit. They are easy to install and fit perfectly onto the ear cups of the headphones. This ensures an optimal seal and thus a detailed sound with high wearing comfort.Note: These ear pads also fit the FiiO Jade Audio JT7
Protein leather ear pads for the FiiO FT1 and FT1 ProHeat-dissipating ear pads made of protein leather and mesh fabricCounteract fatigue and overheated ears.Perfect fit for FiiO FT1 and FT1 Pro headphones.Easy installationFiiO HS-FT1C – Protein leather ear pads for FT1 and FT1 Pro headphones The HS-FT1C ear pads are made of protein leather and mesh fabric and have particularly good heat dissipation properties. They prevent fatigue and overheated ears and are particularly well suited for long periods of use. Drum beats sound particularly clear and sibilance is reduced. The low frequencies, on the other hand, are slightly less emphasised. They have been specially developed for the FiiO FT1 and FT1 Pro headphones to ensure a perfect fit. They are easy to install and fit perfectly on the ear cups of the headphones. This ensures an optimal seal and thus a detailed sound with high wearing comfort.Note: These ear pads also fit the FiiO Jade Audio JT7
Replacement ear pads for Jadeaudio JT1 Original accessories specially designed for FiiO JT1 headphones, ensuring a perfect fit and authentic performance Optimal size and comfort – The ear pads measure 100 x 31 mm and are designed to restore the original comfort and acoustic seal of your JT1 headphones High-quality materials – Made from environmentally friendly materials for durability and safe, long-term use Easy installation – Serves as a direct, hassle-free replacement for worn original FiiO JT1 ear pads Focused functionality – A single pair of ear pads specifically designed to restore the comfort and noise isolation of your headphones. Compatibility: FiiO JT1 headphones only
Open Back Planar Magnetic Headphones
95 x 86 mm proprietary planar driver
1 μm ultra thin diaphragm
Patented sapphire and aluminum dual coating technology
Patented uniform magnetic field design
28 nm grade process technology
High sensitivity of 95 dB/mW, easy to drive
Lightweight, foldable design at 365 g
Custom tuned cable for planar drivers
Includes both 3.5 mm and 4.4 mm headphone cables
Hi Res Audio certification
Proprietary engineering with a deep commitment to sound
quality
95 x 86 mm proprietary planar driver
The JT9 is built around a large 95 x 86 mm diaphragm, giving
it a natural edge in soundstage, bass extension and dynamic range. It is
powered by planar driver technology developed in house by FIIO's acoustic
engineering team. Developed using the latest manufacturing techniques and
continually refined through real world listening feedback from previous
generation products, every aspect, from production processes to key acoustic
parameters, has been carefully optimized to deliver an even higher level of performance.
The improved manufacturing process lowers the driver's
resonant frequency, allowing for deeper bass, a fuller and warmer sound
signature and greater overall refinement. Complementing the driver is a newly
designed ear cup structure that reduces the in the head vocal effect and
expands vertical soundstage, creating a more spacious, natural presentation
that stays comfortable to enjoy for hours.Joseph, Chief Engineer of FIIO's IEM R&D Center,
explains: “One of the key advantages of a planar driver is its exceptionally
light, ultra thin diaphragm. With virtually no inertial mass to overcome, it
can respond quickly to even the finest details in an audio signal. With the
JT9, our goal was to create a planar headphone that is easy to enjoy for hours,
with a spacious and well organized soundstage. To achieve this, we drew
inspiration from both the JT7 and the FT1 PRO, incorporating a secondary sapphire
coating process. The result is extended frequency response at both ends of the
spectrum, more effortless bass, clearer treble and improved reproduction of
string instruments.”Ultra light, ultra thin, ultra responsive
1 μm ultra thin diaphragmThe large diaphragm delivers excellent bass extension and
dynamic range, while its ultra thin construction enables exceptionally fast
driver response. Featuring a 1 μm ultra thin diaphragm, the JT9 embodies the
defining qualities sought after in planar driver design, extremely light weight
and exceptional thinness, allowing it to achieve remarkable performance within
its class. Its exceptionally fast transient response lets it faithfully
reproduce the finest musical details, from the delicate harmonics of a violin
to the lingering shimmer of a triangle. With outstanding dynamic range and
excellent frequency response, the JT9 captures every nuance with remarkable
precision.Two advanced materials, one synergistic design
Patented sapphire and aluminum dual coating technology
The JT9 is built around one of FIIO's signature acoustic
patents, the dual coating technology, patent number ZL2024205488218. Starting
with a high performance PET diaphragm substrate, natural sapphire and metallic
aluminum were carefully selected for a precision dual layer coating,
comprehensively optimizing frequency response across the entire range. The
result is a dramatic leap in resolution, letting listeners experience the
refined, nuanced sound quality and captivating tonal character unique to planar
drivers.
Aluminum: lightweight aluminum improves voice coil
conductivity, lowers impedance and makes the headphones easier to drive while
delivering a wider dynamic range.Sapphire: sapphire's exceptional hardness increases
diaphragm rigidity, enhancing high frequency resolution and clarity while
contributing to the headphones' distinctive tonal character.Masterful craftsmanship, semiconductor grade precision
28 nm grade manufacturing processThe JT9 incorporates a 28 nm chip level fabrication process
derived from semiconductor manufacturing. The conductive voice coil is
processed in a 6.6 x 10⁻³ Pa high vacuum environment, completely isolated from
air. The chamber is then heated to 120°C, transforming the required metal
target material into ionized particles. Through electrostatic attraction, these
ions are deposited evenly and securely onto the diaphragm surface, forming the
precise coating thickness required by the acoustic design. This highly
controlled manufacturing process delivers exceptional production precision
while enhancing the durability and long term reliability of the conductive
voice coil.Balanced magnetic field for lower distortion
Patented uniform magnetic field designTraditional rectangular magnet arrays often produce uneven
magnetic field distribution, resulting in inconsistent force acting on
different areas of the voice coil, which can induce diaphragm break up and
increase distortion. To address this, the JT9 incorporates FIIO's proprietary
uniform magnetic field technology, patent number ZL202420884963.1. By
optimizing the magnetic circuit and using custom shaped high strength magnets,
the JT9 creates an exceptionally uniform magnetic field across the entire driver.
This allows the entire diaphragm to move with more consistent excursion and
driving force, effectively suppressing diaphragm break up at its source. The
result is significantly reduced distortion, with fine musical detail preserved
with exceptional clarity.Easy to drive, great sound anywhere
95 dB/mW high sensitivity for effortless drivingWith a sensitivity of 95 dB/mW at 1 kHz, the JT9 requires
significantly less driving power than conventional planar headphones. Whether
connected to a smartphone with a portable DAC/amp dongle or other everyday
source devices, the JT9 is easy to drive while delivering a rich, full bodied
sound, so outstanding planar sound stays within reach wherever you listen.Welcome to a lighter era for planar headphones
365 g lightweight, foldable design
The JT9 breaks free from the age old problem of heavy,
uncomfortable planar headphones. Wear it for hours and barely notice it is
there.
Just 365 g: about 40 g lighter than typical full size planar
headphones, which usually weigh over 400 g and make head pressure and neck
discomfort more likely during extended listening sessions. The JT9's lighter
weight eases that burden so listeners can immerse themselves fully in music for
hours on end.
Foldable design: the rotating, foldable ear cups collapse
into a compact form that is easy to store and even easier to take along,
whether at home or on the move.
3D ergonomic design: shaped to mirror the natural contours
of the human face, its streamlined 3D design hugs the cheeks perfectly. Paired
with a three axis rotation structure, it delivers a superior seal, a closer fit
and even, balanced clamping force for all day comfort.Ergonomic headband: the headband supports multi axis
rotational adjustment, with the ear cups and connectors rotating and extending
smoothly and freely. Whatever the head shape or ear contour, it offers a tailor
made fit.The right cable for the right driver
Custom tuned cable for planar driversA great driver deserves an equally great cable. That is why
a specially tuned cable was developed around the acoustic characteristics of
the JT9's planar driver. Made from high purity oxygen free copper, it combines
0.06 mm, 0.08 mm and 0.12 mm copper strands into a substantial 22 AWG
conductor. Carefully tuned to complement the driver's performance, it enhances
the weight and body of the mids and bass, delivers a more spacious and natural
presentation and enhances bass impact and ambience, bringing every note to life
with rich, effortless energy.Ready for a wide variety of sources
Includes both 3.5 mm and 4.4 mm headphone cablesThe JT9 includes a 3.5 mm to dual 3.5 mm single ended cable,
a 4.4 mm to dual 3.5 mm balanced cable and a 6.35 mm to 3.5 mm adapter as
standard. Whether connecting to different source devices or tailoring the setup
to personal listening preferences, listeners can choose whichever cable best
suits their needs, for more ways to experience the music.Officially designed, thoughtfully complete
Water resistant storage case includedThe JT9 comes with an official storage case, making storage
and transport simple and worry free. Made from water resistant, moisture
resistant woven fabric, the case is sized to fit the JT9 precisely, providing
dependable protection wherever it goes.Hi Res Audio certified
Industry recognized sound qualityAn authoritative stamp of approval for exquisite planar
sound. The JT9 has earned official Hi Res Audio certification from the
prestigious Japan Audio Society (JAS). With benchmark setting audio
performance, it masterfully recreates the purity, nuance and detail of a live
musical performance.Understated elegance
Two color options
Available in classic black and a retro deep brown. These
refined tones add a premium touch to the JT9's sleek contours. Whichever color
is chosen, the JT9 becomes a true audio artwork that expresses a personal
style.Note: the deep brown edition is expected to launch
officially in September 2026. Stay tuned.
Hi-Fi Stereo Amplifier2×300 W output power at 4 ΩTPA3255 amplifier platform from Texas InstrumentsBluetooth 6.0 with support for SBC, AAC, and LDACUSB, coaxial, and line inputsConnections for speakers, subwoofers, and preamp outputSeparate controls for bass and trebleRGB lighting for inputs and codec displayAluminum and wood enclosureExternal 48V/5A power supply includedPower amplifier with Bluetooth LDACThe LEVEL 1 is a compact desktop power amplifier based on a Texas Instruments TPA3255 platform that delivers up to 2×300 W of output power—with a footprint more akin to a laptop than a traditional amplifier. It combines Bluetooth 6.0 with LDAC, USB, coaxial, and line inputs, as well as connections for speakers, subwoofers, and a preamp output.2 × 300 W Output PowerThe LEVEL 1 remains compact without compromising on performance. With up to 2 × 300 W of output power at 4 Ω, it can handle bookshelf speakers, desktop monitors, and even some floor-standing speakers. The included 48 V/5 A power supply supports daily music enjoyment, while higher power can provide additional headroom when needed.TI amplification with low distortionAt its heart is the TPA3255 amplifier chip from Texas Instruments. It uses integrated feedback and fast error correction to reduce distortion while maintaining efficiency. The result is stable output power with low THD+N and a signal-to-noise ratio of around 105 dB, preserving detail without adding noise.Audiophile-grade internal componentsThe internal layout is designed for stability and signal integrity. A six-layer PCB with thick copper traces ensures a clean power supply, while shielded inductors reduce interference. Capacitors from WIMA, Nichicon, and ELNA are used in key stages to shape a balanced, controlled sound.Flexible digital and analog inputsThe LEVEL 1 accepts USB, coaxial, line-in, and Bluetooth sources, making it easy to connect computers, streamers, CD players, or smartphones. USB supports up to 24-bit/96 kHz PCM and offers a direct path from digital sources without relying on additional converters.Expansion with subwoofer and preamp outputDedicated subwoofer and preamp outputs allow the amplifier to grow with your system. You can add an active subwoofer to extend the low-frequency range or route the signal to an external power amplifier. This flexibility supports both simple stereo systems and more complex setups.Physical tone controlsIndependent bass and treble controls on the front panel allow you to directly adjust the sound balance. The settings can be adjusted continuously and predictably, so you can fine-tune playback for different recordings, speakers, or volume levels without having to dig through menus.Bluetooth with LDAC SupportBluetooth 6.0 is built-in for wireless playback and supports the SBC, AAC, and LDAC codecs. LDAC can transmit up to 990 kbps, preserving more detail than standard Bluetooth audio and making wireless listening a practical option for higher-quality sources.Metal and Wood ConstructionThe chassis combines an aluminum alloy with real wood panels, giving the amplifier a solid, tactile presence on a desk or shelf. The materials also contribute to durability and heat management during extended listening sessions.External high-current power supplyThe included 48 V/5 A power supply is designed to provide a stable power supply with low hum. A constant power supply ensures clearer sound and better dynamic control, especially when driving more demanding speakers.
